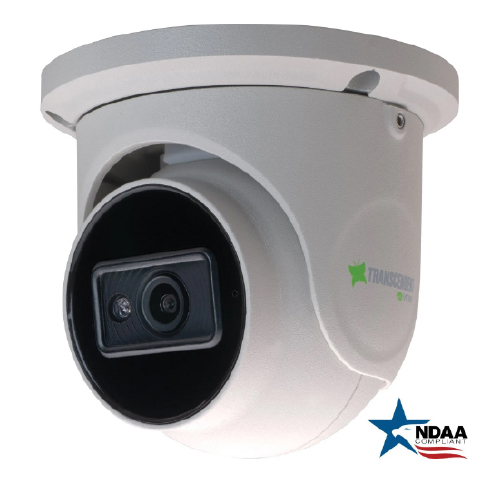

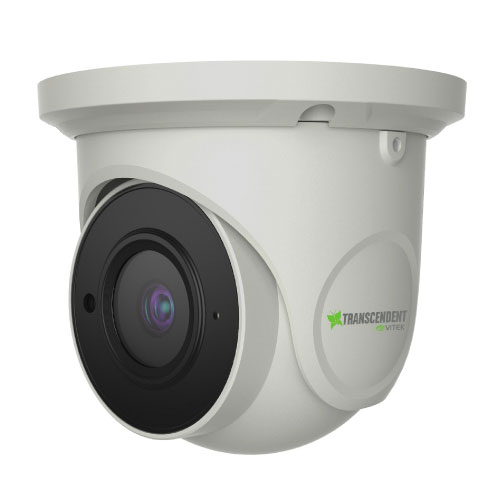

VTC-THT5R3/R2
Transcendent 5.0 Megapixel Indoor/Outdoor 4-IN-1 Turret Camera w/ Matrix IR
Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 5.0 MegaPixel resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
• 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor
• High Definition Analog (HDA): HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel /CVBS: 960H Video Output
• 3.6mm or 2.8mm Fixed Iris Lens Available
• Matrix IR with up to 100’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP67 Weather Resistance
• Supports Up The COAX Control
• Up to1500’ HD Video Transmission
(Depending on cable characteristics and integrity)
• Optional Junction Box Mounts (VT-TJB01, VT-TJB08) and Wall Mount (VT-TWMT-3) Available• 12VDC Operation
• Available in Ivory or Charcoal Grey (VTC-THT5R3B/2B)
• 3 Year Warranty
|
Image Sensor
|
1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor
|
|
Signal System
|
PAL/NTSC
|
|
Effective Pixels
|
2592 x 1944
|
|
Resolution
|
HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
|
|
Video Output
|
HD-TVI / AHD / CVI / CVBS (Selectable)
|
|
Frame Rate
|
20fps
|
|
Lens
|
3.6mm or 2.8mm (Fixed)
|
|
Day/Night
|
True Day/Night by ICR
|
|
Min. IIIumination Color:
|
0.01 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
|
|
IR LEDs
|
Matrix
|
|
IR Distance
|
100'
|
|
S/N Ratio
|
=52dB (AGC Off)
|
|
WDR
|
D-WDR
|
|
Digital Noise Reduction (DNR)
|
XD-DNR (2D-DNR & 3D-DNR)
|
|
White Balance
|
Auto (AWB)
|
|
BLC
|
YES
|
|
Control over COAX (COC)
|
YES
|
|
Transmission Distance
|
Up to 1500’ (Depending on cable characteristics & integrity)
|
|
Power Input
|
12VDC
|
|
Power Consumption (12VDC) IR Off:
|
120mA / IR On: 480mA
|
|
Weather Resistance
|
IP67
|
|
Operation Conditions
|
-4~122 / 10%~90% Humidity
|
|
Weight
|
16.58 oz. / 1.04 lbs. / 470g
|
|
Dimensions
|
3.77 x 4.25 (95.8 x 108mm) Dia x H
|
