5MP 2.8mm Turret WDR Pro VIVOTEK

5MP 2.8mm Turret WDR Pro VIVOTEK

Item #
CID51V1T3
Brand
Vivotek
Model
IT9380-HF2

Warranty
1 Year
Add On Products
Product Description

Specifications

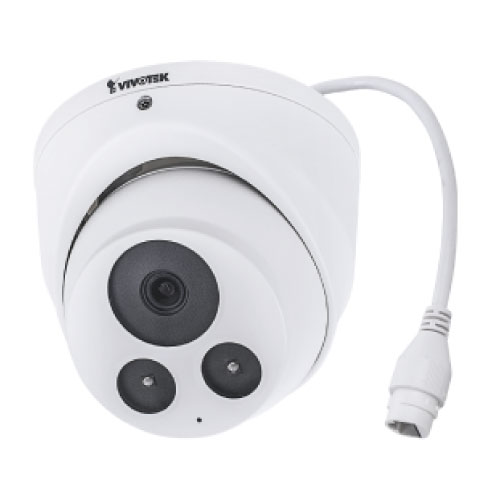

Vivotek IT9380-HF2 5MP 2.8mm Turret WDR Pro


IT9380-H2 5MP Network Turret Camera from Vivotek.This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 20 fps. Two IR LEDs provide up to 98' of night vision. The camera features a 2.8mm fixed lens that delivers a 103° horizontal field of view, a built-in microphone, and a memory slot that accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cabl


This turret camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in a metal enclosure that is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.


Camera
Sensor    5 MP 1/2.7" CMOS
Focal Length    2.8mm
Maximum Aperture    f/2
Zoom    Digital: 48x
Lens Field of View    Horizontal: 103°
Vertical: 76°
Diagonal: 134°
IR Cut Filter    Mechanical
Day/Night    Yes
Minimum Illumination    Color: 0.03 Lux
B&W: 0 Lux
Shutter Speed    1/32,000 to 1/5 Seconds
Camera Angle Adjustment    Horizontal: 0 to 360°
Vertical: 0 to 70°
Video
Streaming Resolution    2560 x 1920 at 20 fps
Supported Video Compression    H.264, H.265, MJPEG
Multi-View Streaming    Yes, 3 Streams
Audio
Streaming    Single
Audio Formats    G.711, G.726
Built-In Mic    Yes
Networking
Security    HTTPS, IEEE 802.1X
Supported Protocols    ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
System Integration
Application Programming Interface (API)    ONVIF Profiles S & G
Analytics    Five-Window Video Motion Detection
Event Trigger    Yes
Event Action    Recording, Notification, Alarm
Data Streaming    Yes
System Requirements
Windows OS Support    Windows 7, 8
Mac OS Support    macOS 10.12
Environmental
Operating Temperature    -4 to 140°F / -20 to 60°C
Startup Temperature    14 to 140°F / -10 to 60°C
Operating Humidity    90%
IP Rating    IP66
IK Rating    IK10
General
Memory    512 MB RAM / 128 MB Flash
Recording Media    microSD (up to 256 GB)
Pan/Tilt    None
I/O Connections    1 x RJ45
IR Range    98.43' / 30 m
Video Management Software    VAST, Shepherd
Supported Languages    English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Internal Storage    None
External Storage Options    NAS
Power Source    PoE 802.3af (15 W)
Power Consumption    6 W
Material of Construction    Metal (Unspecified Type)
Dimensions    ø: 4.1 x H: 3.2" / ø: 105.0 x H: 82.5 mm
Weight    1.05 lb / 475 g
Packaging Info
Package Weight    1.76 lb
Box Dimensions (LxWxH)    7.4 x 6.8 x 5.8"
