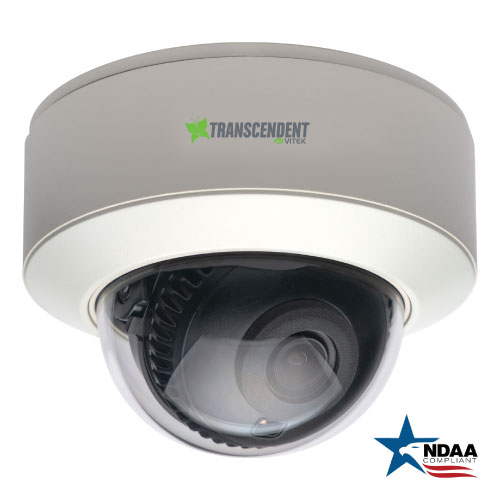

NDAA Compliant 5 MegaPixel Fixed Lens WDR Fixed IP Vandal Dome Camera
1/2.7” 5.0 Megapixel Progressive Scan CMOS Image Sensor
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
2.8mm Fixed Iris Lens
Matrix IR (up to 100’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
1 Ch. Audio In + Built-in Mic*
Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance + IK10 Impact Protection
Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3), Pendant Mount (VT-TPDM-1 [reqs. VT-TJB03A]) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available [See Additional Mounting Options Below]
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research state, local, and federal laws regarding the implementation of audio surveillance
|
Image Sensor
|
1/2.7” 5.0 Megapixel CMOS Image Sensor
|
|
Image Size
|
5 MegaPixel (2880 × 1620)
|
|
Resolution
|
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
|
|
Min. Illumination
|
0.007 lux @F1.6, AGC ON; 0 lux with IR
|
|
| Electronic Shutter |
1 s ~ 1 / 100000 s
|
|
Lens
|
2.8mm Fixed Iris Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
|
|
IR LEDs (Range)
|
1 Matrix Style IR (up to 100’)
|
|
| Video Compression |
H.265+ / H. 265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream
|
5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
|
|
| Sub, Third Stream |
720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)
|
|
Bit Rate
|
Type 64 Kbps ~ 8 Mbps / VBR + CBR
|
|
| Wide Dynamic Range |
120dB WDR
|
|
| Digital Noise Reduction |
3D-DNR
|
|
| Other Features |
Back Light Compensation, Highlight Compensation
|
|
NDAA Compliant
|
Yes
|
|
Image Setting
|
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
|
|
| Analytics |
Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
|
|
| Smart Alarm |
Motion Detection, SD Card Error, SD Card Full
|
|
| General Functions |
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
| Region of Interest (ROI) |
Each ROI to be configured separately
|
|
| Hardware Reset |
Yes
|
|
| Analog Video Output |
No
|
|
Audio
|
1 Ch. Audio In + Built-in Mic*
|
|
| Local Storage |
Built-in Micro SD card slot up to 256GB
|
|
Remote Viewing
|
VMS / Web Browswer / iOS & Android Apps
|
|
Supported Browsers
|
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
|
|
| Connection Protocol |
ONVIF
|
|
Weather Resistance
|
IP67+IK10
|
|
Power Input
|
12VDC / PoE
|
|
| Power Consumption |
(12VDC) 350mA (LEDs Off) / 600mA (LEDs On)
|
|
| Power Consumption (PoE) |
<6W
|
|
Working Environment
|
-22° ~140°F (-30°~60°C) / < 95% Humidity
|
|
| Weight NET (SHIPPING) |
22.58oz / 1.41lb / 640g (28.22oz / 1.76lb / 800g)
|
|
| Dimensions (Dia × H) |
3.44 × 4.69” [87.4 × 119mm]
|
|
|
*Please research local, state and federal laws regarding the implementation of audio surveillance.
|
