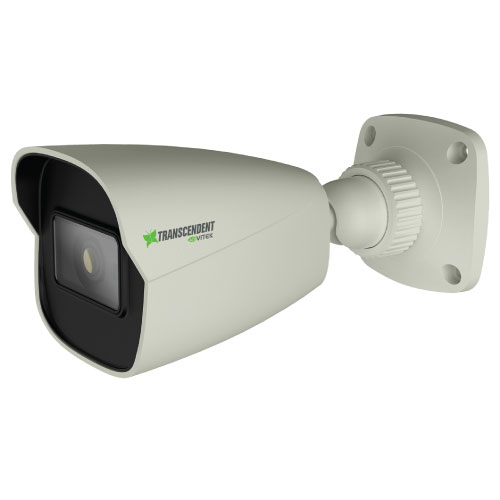

VTC-TNB5RFE-2
Transcendent Series 5 MP Indoor/Outdoor WDR IP Bullet Camera with Matrix IR.
• 1/2.7” 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5.0 MegaPixel (2592×1944)
• 2.8mm Fixed Iris Lens
• 1 Matrix IR LED with 100’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D DNR) Noise Reduction
• Features: On Board Motion Detection, Privacy Masking, Region of Interest, Exception, Line Crossing, Intrusion, Object Detection / Removal (Museum Search)
• H.265, H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• MicroSD Memory Card Slot for Local Recording supporting up to 128GB
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Box Mounts Available (VT-TJB08)
• 12VDC & PoE (Power over Ethernet) Operation
Transcendent Series High Definition 5 Megapixel IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.
Specifications
| • Image Sensor 1/2.7” 5.0 Megapixel Progressive Scan CMOS |
| • Image Size 5 MegaPixel 2592×1944 |
| • Resolution 5 MP (2592×1944) / 4 MP (2592×1520) / 3 MP (2304×1296) / 1080P (1920×1080) / 720P (1280×720) / D1/CIF (480×240) |
| • Min. Illumination 0 Lux (IR LED ON) |
|
| • Lens 2.8mm Fixed Iris Lens |
| • Day/Night True Day/Night by ICR |
| • Matrix LED 1 |
| • IR Distance 100‘ |
|
| • Video Compression H.265 / H.264 / MJPEG |
| • Multi-Stream 5MP (1~20fps), 4MP, 3MP, 1080P, 720P (1~30fps) |
| • WDR Digital WDR |
| • DNR XD-DNR (3D-DNR & 2D-DNR) |
• Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
| • Image Setting Saturation, Brightness, Contrast, WDR, Noise reduction |
| • Smart Alarm Motion Alarm |
| • Region of Interest Up to 3 areas can be configured |
|
| • Network RJ45 |
| • RS485 x 1 |
| • Event Action: Recording, Notification, Alarm |
| • Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab |
| • Connection Protocol ONVIF |
| • Weather / Impact Resistance IP67 Weather Resistance |
| • Power Input 12VDC / PoE |
| • Weight: 12.49 oz. / 0.78 lbs. / 354g |
| • Dimensions: L x W x H 6.59” × 2.93” 2.93” (167.5mm × 74.5mm × 74.5mm) |
