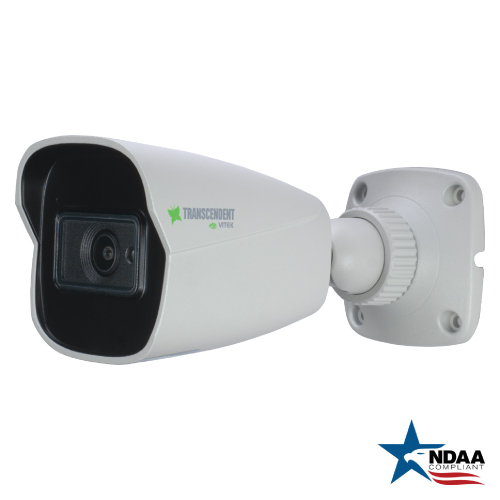

Transcendent Series 5 MP Indoor/Outdoor WDR IP Bullet Camera with Matrix IR
1/2.7” 5.0 Megapixel Progressive Scan CMOS Image Sensor
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
2.8mm Fixed Iris Lens
Matrix IR (up to 100’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
1 Ch. Audio In + Built-in Mic*
Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Included Wall Mount, Optional Junction Box (VT-TJB0B) Available
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research state, local, and federal laws regarding the implementation of audio surveillance
|
Image Sensor
|
1/2.7” 5.0 Megapixel CMOS Image Sensor
|
|
| Image Size |
5 MegaPixel (2880 × 1620)
|
|
Resolution
|
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
|
|
Min. Illumination
|
0.007 lux @F1.6, AGC ON; 0 lux with IR
|
|
Electronic Shutter
|
1 s ~ 1 / 100000 s
|
|
Lens
|
2.8mm Fixed Iris Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
|
|
IR LEDs
|
(Range) 1 Matrix Style IR (up to 100’)
|
|
Video Compression
|
H.265+ / H. 265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream
|
5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
|
|
| Sub, Third Stream |
720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)
|
|
| Bit Rate |
/ Type 64 Kbps ~ 8 Mbps / VBR + CBR
|
|
Wide Dynamic Range
|
120dB WDR
|
|
| Digital Noise Reduction |
3D-DNR
|
|
| Other Features |
Back Light Compensation, Highlight Compensation
|
|
| NDAA Compliant |
Yes
|
|
| Image Setting |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
|
|
| Analytics |
Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
|
|
Smart Alarm
|
Motion Detection, SD Card Error, SD Card Full
|
|
General Functions
|
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
| Region of Interest (ROI) |
Each ROI to be configured separately
|
|
Hardware Reset
|
Yes
|
|
Analog Video Output
|
No
|
|
| Audio |
1 Ch. Audio In + Built-in Mic*
|
|
| Local Storage |
Built-in Micro SD card slot up to 256GB
|
|
| Remote Viewing |
VMS / Web Browswer / iOS & Android Apps
|
|
Supported Browsers
|
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
|
|
| Connection Protocol |
ONVIF
|
|
| Weather Resistance |
IP67
|
|
Power Input
|
12VDC / PoE
|
|
| Power Consumption |
12VDC 300mA (LEDs Off) / 600mA (LEDs On)
|
|
Power Consumption
|
PoE <6W
|
|
Working Environment
|
-22°~140°F (-30°C ~ 60°C) / < 95% Humidity
|
|
| Weight Net (Shipping) |
14.11oz / .88lb / 400g (19.40oz / 1.21lb / 550g
|
|
Dimensions L x W x H
|
6.60” × 2.94” 2.94” (167.6mm × 74.7mm × 74.7mm)
|
