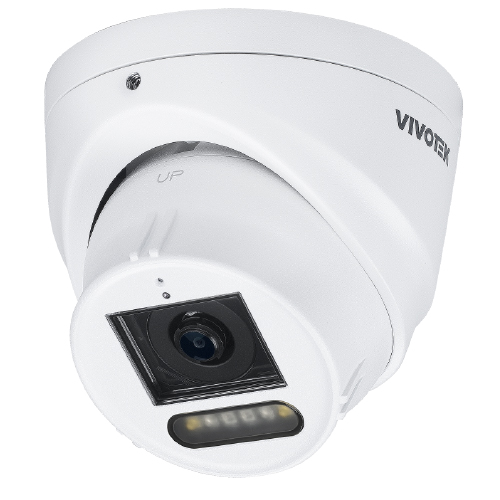

5MP 2.8mm H.265 IP Turret WDR Vivotek

Product Description

C-series AI camera offers superior image performance with its advanced Sony sensor featuring STARVIS 2 technology. This combination provides a 2.5x improvement in dynamic range and light sensitivity, ensuring excellent visibility across various lighting conditions. The RealSight Engine further enhances image detail and quality, automatically capturing clear portraits details in both bright and low-light environments.

Class-leading image performance in daytime
The camera delivers exceptional clarity and precision to ensure superior visibility from bright daylight to low-light environments, assured that every detail is captured with remarkable clarity in all lighting conditions.

Class-leading image performance in nighttime
The camera ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance performance.

performance.
Advanced Analytics
Enhance your investigative efficiency with potent data revealed by this camera, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.

Accurate object detection in day and night
The camera equipped with a class-leading AI processor, effortlessly manages over 25 detection objects in its field of view (FOV). It accurately identifies objects with their attributes and is not influenced by obstacles or lighting conditions.

AI detection for accurate alarm
VIVOTEK Smart VCA is designed to improve monitoring efficiency and reduce users' workloads compared to conventional cameras with motion detection. It offers precise detection of unusual events, providing detailed video analytics and quick searches. This system reduces false alarms and notifies managers promptly, enabling them to implement effective management strategies.


Complete video Security with VIVOTEK AI-driven solution
Providing same user experience through VIVOTEK complete solution and platform, not only provide accurate incident monitoring, intuitive security system operation on footage investigation, also users' can access and manage all the devices and accounts on a single platform.

System Information	CPU Multimedia SoC (System-on-Chip) Flash 8 GB RAM 2 GB
Camera Specifications	Image Sensor 1/2.8" Progressive CMOS Max. Resolution 2560x1920 (5MP) Lens Type Fixed-focal Focal Length f = 2.8 mm Aperture F2.0 Iris Type Fixed Iris Field of View 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day/Night Yes Removable IR-cut filter Yes Illuminators Built-in Warm Light & Infrared (Hybrid) illuminators, effective up to 30 meters with Smart IR/ warm light Minimum Illumination 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on Pan Range >350° Tilt Range 70° Rotation Range ±175° Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) Storage Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) Built-in Installation Aids Pixel calculator
Video	Compression H.265, H.264, MJPEG Maximum Frame Rate 30 fps @ 2560x1920 (5MP) Maximum Streams 3 video streams (Up to 8 configurable profiles) Main Stream 30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3) 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 2nd Stream 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3); 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 60 fps @ 1280x720, 640x360 (16:9) 3rd Stream 30fps @ 1280x960, 800x600, 640x480 (4:3); 30 fps @ 1280x720, 640x360 (16:9); 60 fps @ 1280x720, 640x360 (16:9) S/N Ratio 58 dB Dynamic Range 120 dB Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III Image Settings General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure/smart IR Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR Privacy mask Pixel calculator Scheduled profile settings
Audio	Audio Capability One-way Audio Compression MPEG-2 AAC-LC, G.711, G.726 Interface Built-in microphone Effective Range 5 meters
Network	Users Live viewing for up to 10 clients Security Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF Profile G, S, T supported, specification available at www.onvif.org
AI Analytics	Compute Capability SoC with built-in hardware deep learning accelerator Vision Object Analytics Object Detection People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction Application Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection) Application available with license Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
Solution Integration	VADP Package Trend Micro (Default, 1-year free trial)
Alarm and Event	Event Trigger camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot Event Action Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General	Connectors RJ-45 cable connector for 10/100 Mbps Network/PoE connection LED Indicator System power and status indicator Power Input IEEE 802.3af PoE Class 3 Power Consumption Max: 10.7W / 7W (IR on/off) Normal: 5.5W Dimensions ø 120 x 95 mm Weight 730 g Certifications EMC CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1) Environment IK10 (IEC 62262), IP66 (IEC 60529) IA BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) Operating Temperature Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off) -30°C ~ 45°C (-22°F ~ 113°F) (IR on) Humidity 90%
System Requirements	Operating System Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser Chrome 58.0 or above Other Players VLC: 1.1.11 or above
Included Accessories	Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
DORI (EN 62676-4 Standard)	Detection (25PPM/ 8PPF) 60.4 m (198.1 ft) Observation (63PPM/ 19PPF) 24.1 m (79.2 ft) Recognition (125PPM/ 38PPF) 12 m (39.5 ft) Identification (250PPM/ 76PPF) 6.0 m (19.6 ft)
