System Information:
|

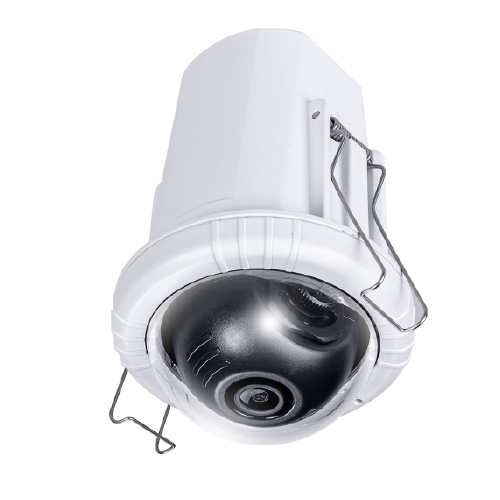

Model: FD9182-H
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 512 MB
|
|
| Camera Features: |
Image Sensor: 1/2.7" Progressive CMOS
Max. Resolution: 2560x1920 (5MP)
Lens Type: Fixed-focal
Focal Length: f = 2.8 mm
Aperture: F2.0
Iris Type: Fixed Iris
Field of View: 103° (Horizontal), 76° (Vertical), 134° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
Minimum Illumination: 0.03 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W)
Pan Range: ±80°
Tilt Range: 65°
|
|
Pan/Tilt/Zoom Functionalities:
|
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
|
Storage:
|
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
|
|
| Video: |
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 20 fps @ 2560x1920
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: 65 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
|
|
Image Settings:
|
General settings, Image settings, Exposure settings, Privacy mask, Scheduled profile settings
|
|
| Audio: |
Audio Capability: One-way Audio
Audio Compression: G.711, G.726
Audio Interface: Built-in microphone
Effective Range: 5 meters
|
|
| Network: |
Users: Live viewing for up to 10 clients
Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security
|
|
Protocols:
|
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
|
|
| Interface: |
10 Base-T/100 Base-TX Ethernet (RJ-45)
|
|
| ONVIF: |
Profile G, S, T supported, specification available at www.onvif.org
|
|
| Solution Integration: |
Video Motion Detection: Five-window video motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
|
|
| Alarm and Event: |
Event Trigger: Audio detection, camera tampering detection, cybersecurity events, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification; File upload via email, HTTP, FTP, NAS server, SD card
|
|
| General: |
Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 2
Power Consumption: Max. 3.6 W
Dimensions: Ø 82 x 122 mm
Weight: 353 g
Certifications: EMC, Safety, Environment, IA
Operating Temperature: Starting Temperature: -10°C ~ 50°C, Working Temperature: -10°C ~ 50°C
Humidity: 90% RH (non-condensing)
Warranty: 36 months
|
|
| System Requirements: |
Operating System: Microsoft Windows 10, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
|
|
| Included Accessories: |
Quick installation guide
|
