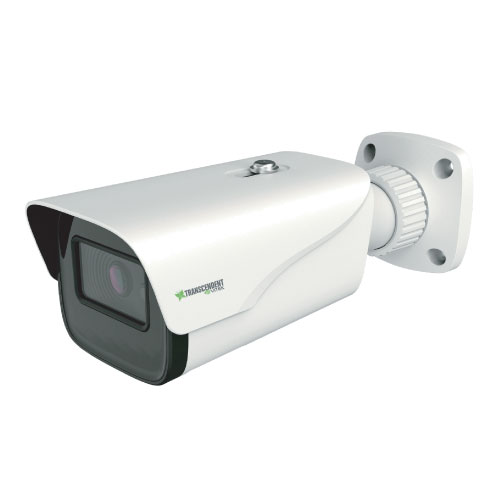

Transcendent Series NDAA Compliant High Definition 5 MegaPixel IP Network Cameras with Gen. IV Advanced Analytics including Face Detection and Target Counting offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras feature remote viewing via CMS, Web Browser, and iOS & Android Apps
• 1/2.7” 5 MegaPixel Progressive Scan CMOS Sensor
• NDAA Compliant
• Up to 30fps live view @ 5 MegaPixel (2592×1944)
• Available with 2.8mm Fixed Lens
• Matrix IR (up to 165’ IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line
Crossing, Target Counting [All by Human / Motor Vehicle Classification]
Face Detection, Video Blur, Video Color Cast Detection, Abnormal Video
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In*
• Remote Viewing via CMS, Edge in IE Mode, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance
• Wall Mount Included, Optional Mounts: Junction Box VT-TJB08
[See Additional Mounting Options Below]
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
|
Image Sensor
|
1/2.7” 5.0 MegaPixel Progressive Scan CMOS
|
|
NDAA Compliant
|
Yes
|
|
Image Size
|
5 MegaPixel (2592 × 1944)
|
|
Resolution
|
5MP(2592 × 1955) / 4MP(2592 × 1520) / 3MP(2304 × 1296) / 1080P(1920 × 1080) / 720P(1280 × 720) / D1 / CIF(480 × 240)
|
|
Min. Illumination
|
Color: 0.02 lux@F1.6, AGC ON / Black and White: 0.01 lux@F1.4, AGC ON, 0 lux with IR
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
Day / Night
|
True Day / Night by ICR
|
|
IR LEDs / IR Distance
|
2 Matrix Style IRs / Up to 165’
|
|
Video Compression
|
H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream Sub / Third Stream
|
5MP/4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps, 50Hz: 1~50fps) 720P/D1/CIF (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) / D1/CIF/480×240 (60Hz: 1 ~ 30fps: 50Hz: 1~25fps)
|
|
Bit Rate / Type
|
64 Kbps ~ 8 Mbps / VBR, CBR
|
|
Wide Dynamic Range
|
120dB Super WDR
|
|
Other Features
|
Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
|
|
Digital Noise Reduction
|
XD-DNR (3D-DNR & 2D-DNR)
|
|
Image Setting
|
Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
|
|
Gen. IV Advanced Analytics
|
Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
|
|
Smart Alarm
|
Motion Detection, SD Card Error, SD Card Full
|
|
Region of Interest
|
(ROI) Each ROI to be Configured Separately
|
|
Audio 1 Ch.
|
Audio In*
|
|
Local Storage
|
Built-in MicroSD Card Slot (up to 256GB)
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
IE, Chrome, Firefox, Safari and Edge in IE Mode
|
|
Connection Protocol
|
ONVIF
|
|
Ingress Protection
|
IP67
|
|
Power Input
|
12VDC / PoE
|
|
Pwr Consumption
|
(12VDC) 350mA (LEDs Off) / 800mA (LEDs On)
|
|
Power Consumption (PoE)
|
<9W
|
|
Working Environment
|
-22° ~140°F (-30°~60°C) / < 95% Humidity
|
|
Weight
|
25.40oz / 1.59lbs / .72kg (NET) 31.04oz / 1.94lbs / .88kg (SHIPPING)
|
|
Dimensions
|
(L × W × H) 8.68 × 3.15 × 2.78” (220.5 × 80.1 × 70.5mm)
|
|
*
|
*Please research local, state and federal laws regarding the implementation of audio surveillance
|
