System Information
|

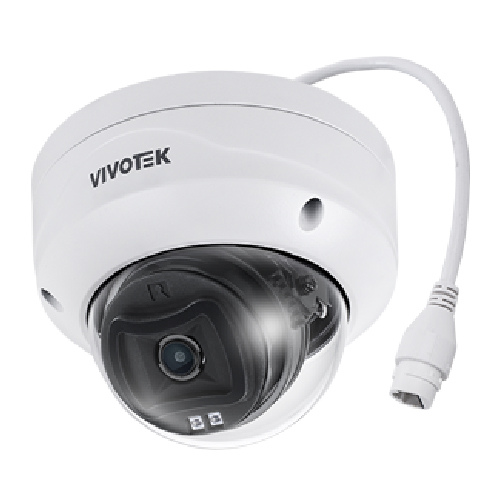

Model FD9383-HV (2.8mm) CPU Multimedia SoC (System-on-Chip) Flash 8 GB RAM 2 GB
|
|
Camera Features |
Image Sensor 1/2.8" Progressive CMOS Max. Resolution 2560x1920 (5MP) Lens Type Fixed-focal Focal Length FD9383-HV (2.8mm): f = 2.8 mm Aperture F2.0 Iris Type Fixed iris Field of View FD9383-HV (2.8mm): 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal) FD9383-HV (3.6mm): 79.6° (Horizontal) 57.8° (Vertical) 105.8° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day/Night Yes Removable IR-cut Filter Yes IR Illuminators Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2 Minimum Illumination 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on Pan Range 350° Tilt Range 75° Rotation Range 350° Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom( 4x on IE plug-in, 12x built-in) Storage Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) Built-in Installation Aids Pixel calculator
|
|
Video
|
Video Compression H.265, H.264, MJPEG Maximum Frame Rate 30 fps @ 2560x1920 Maximum Streams 3 video streams (Up to 8 configurable profiles) Main Stream 30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3) 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 2nd Stream 30fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3); 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 3rd Stream 30fps @ 1280x960, 800x600, 640x480 (4:3); 30 fps @ 1280x720, 640x360 (16:9); 60 fps @ 1280x720, 640x360 (16:9) S/N Ratio FD9383-HV (2.8mm): 58 dB FD9383-HV (3.6mm): 56 dB Dynamic Range 120 dB Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure/smart IR; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR; Privacy mask; Pixel calculator; Scheduled profile settings
|
|
Network
|
Users Live viewing for up to 10 clients Security Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF Profile G, S, T supported, specification available at www.onvif.org
|
|
AI Analytics |
Compute Capability SoC with built-in hardware deep learning accelerator Vision Object Analytics Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction Application Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Face detection) Application available with license Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
|
|
Solution Integration
|
Applications Trend Micro (Default, 1-year free trial)
|
|
Alarm and Event |
Event Trigger camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot Event Action Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card
|
|
General |
Connectors RJ-45 cable connector for 10/100 Mbps Network/PoE connection LED Indicator System power and status indicator Power Input IEEE 802.3af PoE Class 3 Power Consumption Max. 8.5 W/ 6.0 W (IR on/off) Dimensions Ø 117.2 x 89.6 mm Weight 550 g Certifications EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) Operating Temperature Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) Humidity 90%
|
|
System Requirements
|
Operating System Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser Chrome 58.0 or above Other Players VLC: 1.1.11 or above
|
|
Included Accessories |
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
|
|
DORI (EN 62676-4 Standard) |
Detect (25PPM/ 8PPF) FD9383-HV (2.8mm): 60.4 m (198.1 ft) FD9383-HV (3.6mm): 78.3 m (256.8 ft) Observe (63PPM/ 19PPF) FD9383-HV (2.8mm): 24.1 m (79.2 ft) FD9383-HV (3.6mm): 31.3 m (102.7 ft) Recognize (125PPM/ 38PPF) FD9383-HV (2.8mm): 12 m (39.5 ft) FD9383-HV (3.6mm): 15.6 m (51.3 ft) Identify (250PPM/ 76PPF) FD9383-HV (2.8mm): 6.0 m (19.6 ft) FD9383-HV (3.6mm): 7.8 m (25.5 ft)
|
