System Information
|
Model

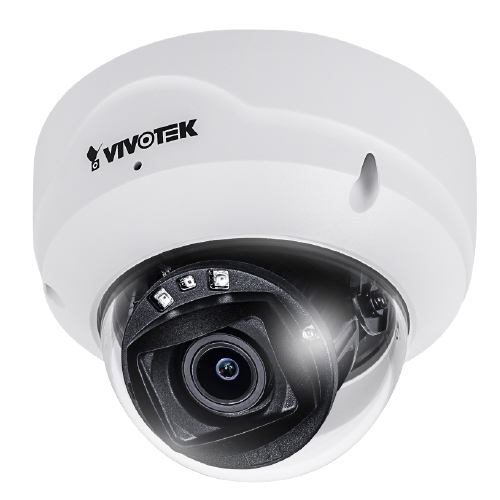

FD9189-HT-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
1 GB
|
|
| Camera Features |
Image Sensor
1/2.7" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f= 2.8 ~ 10 mm
Aperture
F1.8 ~ F2.74
Iris Type
Fixed iris
Field of View
95° ~ 41° (Horizontal)
69° ~ 31° (Vertical)
127° ~ 51° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
Minimum Illumination
0.06 lux @ F1.8 (Color)
0.01 lux @ F1.8 (B/W)
0 lux with IR illumination on
Pan Range
>350°
Tilt Range
80°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920
60 fps @ 1920x1080
Maximum Streams
3 video streams* (Up to 8 configurable profiles)
* Stream 1: 2560x1920
* Stream 2: 1280x960, 800x600, 640x480
* Stream 3: 800x600, 640x480
S/N Ratio
55 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
|
|
Audio
|
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
Network
|
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| AI Analytics |
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: people, vehicle (4-wheeled); Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics
|
|
| Solution Integration |
Applications
Stratocast, Trend Micro IoT Security (3-year free trial)
|
|
Alarm and Event
|
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
|
|
| General |
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
|
|
| LED Indicator |
System power and status indicator
|
|
| Power Input |
IEEE 802.3af PoE Class 0
Power Consumption
Max. 9.7 W (IR on)
Max. 7.3 W (IR off)
|
|
| Dimensions |
Ø 130 x 95 mm
Weight
355 g
|
|
| Certifications |
EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B),
RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B);
Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety : CNS 14336-1)
|
|
| Starting Temperature: |
Starting Temperature:
0°C ~ 50°C (32°F ~ 122°F)
Working Temperature:
-10°C ~ 50°C (14°F ~ 122°F) (IR off)
-10°C ~ 45°C (14°F ~ 113°F) (IR on)
|
|
| Humidity |
98% RH (non-condensing)
|
|
| Warranty |
36 months
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
|
|
| Web Browser |
Chrome 58.0 or above
Other Players
VLC: 1.1.11 or above
|
|
| Included Accessories |
Packing Contents
Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable
|
