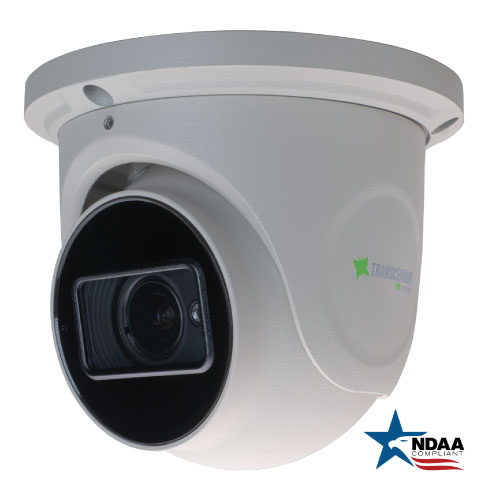

VTC-TNT5RMEA
NDAA Compliant 5 MegaPixel Motorized Lens WDR Motorized IP Turret Camera
1/2.7” 5.0 Megapixel Progressive Scan CMOS Image Sensor
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
2.8~12mm Fixed Iris Lens
Matrix IR (up to 165’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
1 Ch. Audio In + Built-in Mic*
Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Optional Junction Boxes (VT-TJB01, VT-TJB021), WallMounts (VT-TWM03, VT-TWMT-4) and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021]) See Additional Mounting Options Below
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research state, local, and federal laws regarding the implementation of audio surveillance
|
Image Sensor
|
1/2.7” 5.0 Megapixel CMOS Image Sensor
|
|
| Image Size |
5 MegaPixel (2880 × 1620)
|
|
Resolution
|
Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
|
|
Min. Illumination
|
0.007 lux @F1.6, AGC ON; 0 lux with IR
|
|
| Electronic Shutter |
1 s ~ 1 / 100000 s
|
|
Lens
|
2.8~12mm Motorized Varifocal Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
|
|
| IR LEDs (Range) |
2 Matrix Style IR (up to 165’)
|
|
| Video Compression |
H.265+ / H. 265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
| Main-Stream |
5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
|
|
| Sub, Third Stream |
720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)
|
|
| Bit Rate |
/ Type 64 Kbps ~ 8 Mbps / VBR + CBR
|
|
| Wide Dynamic Range |
120dB WDR
|
|
Digital Noise Reduction
|
3D-DNR
|
|
Other Features
|
Back Light Compensation, Highlight Compensation
|
|
| NDAA Compliant |
Yes
|
|
Image Setting
|
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
|
|
| Analytics |
Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
|
|
Smart Alarm
|
Motion Detection, SD Card Error, SD Card Full
|
|
General Functions
|
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
Region of Interest (ROI)
|
Each ROI to be configured separately
|
|
| Hardware Reset |
Yes
|
|
| Analog Video Output |
No
|
|
| Audio |
1 Ch. Audio In + Built-in Mic*
|
|
Local Storage
|
Built-in Micro SD card slot up to 256GB
|
|
| Remote Viewing |
VMS / Web Browswer / iOS & Android Apps
|
|
Supported Browsers
|
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
|
|
| Connection Protocol |
ONVIF
|
|
| Weather Resistance |
IP67
|
|
| Power Input |
12VDC / PoE
|
|
| Power Consumption |
(12VDC) 350mA (LEDs Off) / 800mA (LEDs On)
|
|
| Power Consumption (PoE) |
<8.5W
|
|
Working Environment
|
-22° ~140°F (-30°~60°C) / < 95% Humidity
|
|
Weight Net
|
(Shipping) 24.69oz / 1.54lb / 700g (29.98oz / 1.87lb / 850g)
|
|
| Dimensions |
Dia × H 4.30 × 5.15” [109 × 131mm]
|
|
|
*Please research local, state and federal laws regarding the implementation of audio surveillance.
|
