System Information
|

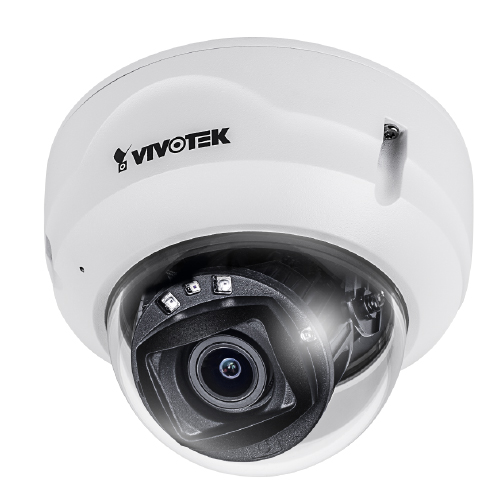

Model: FD9389-EHTV-v2
CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB
RAM: 1 GB
|
|
| Camera Features |
Image Sensor: 1/2.7" Progressive CMOS
Max. Resolution: 2560x1920 (5MP)
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: f = 2.8 ~ 10 mm
Aperture: F1.8 ~ F2.74
Iris Type: Fixed iris
Field of View
95° ~ 41° (Horizontal)
69° ~ 31° (Vertical)
127° ~ 51° (Diagonal)
Shutter Time: 1/5 sec. to 1/32,000 sec.
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-cut Filter: Yes
IR Illuminators: Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
Minimum Illumination:
0.06 lux @ F1.8 (Color)
0.01 lux @ F1.8 (B/W)
0 lux with IR illumination on
Pan Range: >350°
Tilt Range: 80°
Rotation Range: ±175°
Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids: Remote focus, remote zoom
|
|
Video
|
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate:
30 fps @ 2560x1920
60 fps @ 1920x1080
Maximum Streams: 3 video streams* (Up to 8 configurable profiles)
Stream 1: 2560x1920
Stream 2: 1280x960, 800x600, 640x480
Stream 3: 800x600, 640x480
S/N Ratio: 55 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality, and constant bit rate control, Smart Stream III
Image Settings
General settings: Video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings
|
|
Audio
|
Audio Capability: One-way Audio
Audio Compression: G.711, G.726
Audio Interface: Built-in microphone
Effective Range: 5 meters
|
|
| Network |
Users Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
ONVIF Profile
G, S, T supported, specification available at www.onvif.org
|
|
Solution Integration
|
Smart Motion Detection: Five-window video motion detection, human detection, time filter (Without bounding box)
Smart VCA: Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
VADP Package: Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial)
*License required. Free trial license is not supported.
|
|
| Alarm and Event |
Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action: Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server
|
|
| General |
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input: IEEE 802.3af PoE Class 0
Power Consumption: Max: 12.3W (IR on), Max: 9.9W (IR off)
Dimensions: Ø 129 x 94 mm
Weight: 610 g
Certifications
EMC: CE (EN55032, EN55024 Class A, EN50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature: -30°C ~ 50°C (-13°F ~ 122°F)
Working Temperature (IR on): -40°C ~ 60°C (-40°F ~ 140°F) (IR off), -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity: 98% RH (non-condensing)
Warranty
36 months
|
|
System Requirements
|
Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
|
|
| Included Accessories |
Packing Contents: Quick installation guide, alignment sticker, screw pack
|
|
| DORI (EN 62676-4 Standard) |
Detect (25PPM/8PPF):
Wide: 65.8 m (216.0 ft)
Tele: 140.5 m (461.0 ft)
Observe (63PPM/19PPF):
Wide: 26.1 m (85.7 ft)
Tele: 55.8 m (182.9 ft)
Recognize (125PPM/38PPF):
Wide: 13.2 m (43.2 ft)
Tele: 28.1 m (92.2 ft)
|
