5MP 2.7-13.5m  WDR IR Iluminator VIVOTEK

5MP 2.7-13.5m WDR IR Iluminator VIVOTEK

Item #
CIB53VIHT
Brand
Vivotek
Model
IB9387-HT-A

Color
White
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
Special Order
Product Description

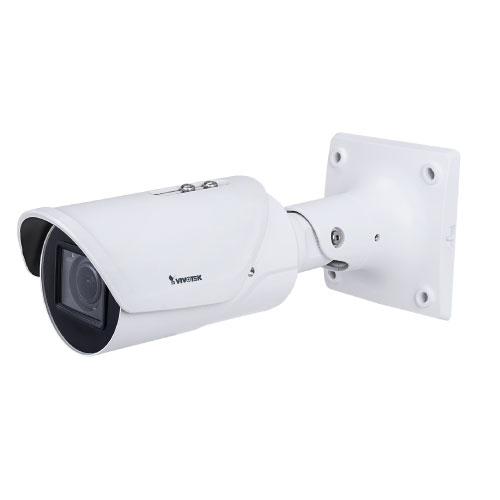

The IB9387-HT 5MP Outdoor Network Bullet Camera with Night Vision from Vivotek uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. Six IR LEDs provide up to 164' of night vision. The camera's 2.7-13.5mm varifocal lens delivers a 100 to 30° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This bullet camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.

Specifications

• Sensor: 5 MP 1/2.7" CMOS
•  Focal Length: 2.7 to 13.5mm
•  Maximum Aperture: f/1.4 - f/2.8
• Zoom Optical: 5x, Digital: 48x
• Lens Field of View Horizontal: 100 to 30°, Vertical: 72 to 23°, Diagonal: 135 to 38°
•  IR Cut Filter Mechanical
•  Day/Night: Yes
• Minimum Illumination: Color: 0.06 Lux, B&W: 0 Lux
• Camera Angle Adjustment: Horizontal: 0 to 350°, Vertical: 0 to 90°
•  Streaming Resolution: 2560 x 1920 at 30 fps, 1920 x 1080 at 60 fps
• Supported Video Compression: H.264, H.265, MJPEG
• Multi-View Streaming Yes, 3 Streams
• Streaming Two-Way
• Audio Formats: G.711, G.726
• Security: HTTPS, IEEE 802.1X
• Supported Protocols: ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
•  Application Programming Interface (API): ONVIF Profiles S & G, VADP
• Analytics:
Five-Window Video Motion Detection
Human Detection
Time Filter
• Event Trigger: Yes
• Event Actio: Recording, Notification, Alarm
• Data Streaming: Yes
• Windows OS Support Windows 7, 8
• Operating Temperature: -22 to 140°F / -30 to 60°C
• IP Rating: IP67
• IK Rating: IK10
• Memory: 1 GB RAM / 256 MB Flash
• Recording Media: microSD (up to 64 GB)
• I/O Connections: 1 x RJ45,1 x Power
• IR Range 164.04' / 50 m
• Video Management Software: VAST, Shepherd
• Dimensions: H: 4.6 x W: 4.6 x L: 11.6" / H: 118.0 x W: 118.0 x L: 294.0 mm
• Weight: 2.76 lb / 1254 g
•  Package Weight: 3.96 lb
• Box Dimensions: (LxWxH) 14.7 x 6.9 x 6.8"
