Vivotek CC9380-HV Overview

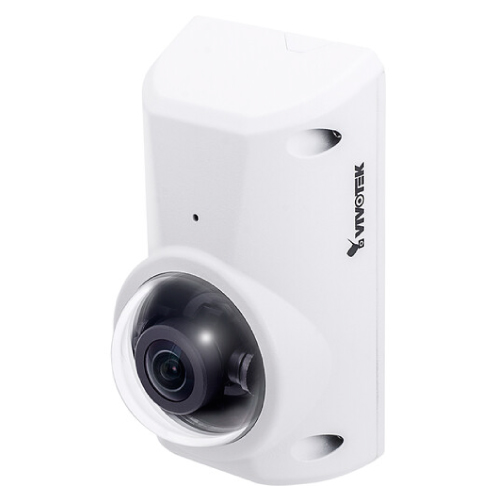

Monitor an indoor or outdoor area with the CC9380-HV 5MP Network Fisheye Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at up to 30 fps. The camera's 1.45mm fixed fisheye lens delivers a 180° horizontal panoramic field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
Features
Multimedia SoC CPU
±25° lens tilt range
Removable IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video codecs
Smart Stream III optimizes bandwidth efficiency
Three video streams (up to eight configurable profiles)
ePTZ with 48x digital zoom
WDR Pro
120 dB dynamic range
62 dB S/N ratio
Image settings include video title and time stamp overlay, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, DIS, scene mode (auto, deblur), exposure, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, privacy mask, and scheduled profile settings
Five-window video motion detection
Event triggers include audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, and system boot
Built-in microphone with an effective audio pickup range of about 16'
100M RJ45 Ethernet
Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, VADP package (1-year free trial of Trend Micro IoT Security, VIVOCloud), VAST VMS, and Shepherd
Live viewing for up to ten clients
System power and status LED indicators
Anti-ligature design makes this suitable for use in medical and holding facilities where self-harm by subjects may be a concern
CE, FCC, VCCI, UL, and CB certified
|
Camera
|
Sensor
5 MP 1/2.7" CMOS
Focal Length
1.45mm
Maximum Aperture
f/2.2
Zoom
Digital: 48x
Lens Field of View
Horizontal: 180°
Vertical: 120°
Diagonal: 180°
IR Cut Filter
Mechanical
Day/Night
Yes
Minimum Illumination
Color: 0.11 Lux
B&W: 0.01 Lux
Shutter Speed
1/32000 to 1/5 Seconds
|
|
| Video |
Streaming Resolution
2560 x 1920 at 30 fps
Supported Video Compression
H.264, H.265, MJPEG
Multi-View Streaming
Yes, 3 Streams
|
|
Audio
|
1- or 2-Way Audio
One-Way
Audio Formats
G.711, G.726
Built-In Mic
Yes
|
|
Pan & Tilt
|
Pan/Tilt
None
|
|
| Networking |
Security
HTTPS, IEEE 802.1X
Supported Protocols
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNTP, SSL/TLS, TCP, UDP, UPnP
|
|
System Integration
|
Application Programming Interface (API)
ONVIF Profiles G, S & T
Analytics
Five-Window Video Motion Detection
OS Compatibility
Windows 7
Windows 8
Windows 10
macOS 10.12
*As of July, 2021: Check with manufacturer for the most up-to-date compatibility
|
|
| Sensors & Alarms |
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
|
|
| Hardware |
Memory
512 MB RAM / 256 MB Flash
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum]
External Storage Options
NAS
|
|
Power
|
Power Source
PoE 802.3af (15 W)
Power Consumption
5 W
Environmental
Operating Temperature
-22 to 122°F / -30 to 50°C
Startup Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
90%
IP Rating
IP66
IK Rating
IK10
|
|
| General |
Inputs/Outputs
1 x RJ45
Video Management Software
VAST, Shepherd, VADP Package
Supported Languages
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Dimensions
H: 4.5 x W: 2.6 x L: 2.3" / H: 115.0 x W: 65.0 x L: 59.0 mm
Weight
0.7 lb / 338 g
|
|
| Packaging Info |
Package Weight
1.32 lb
Box Dimensions (LxWxH)
5.4 x 5.3 x 4.2"
|
