5MP 180* View Fisheye VIVOTEK

Product Description

Overview

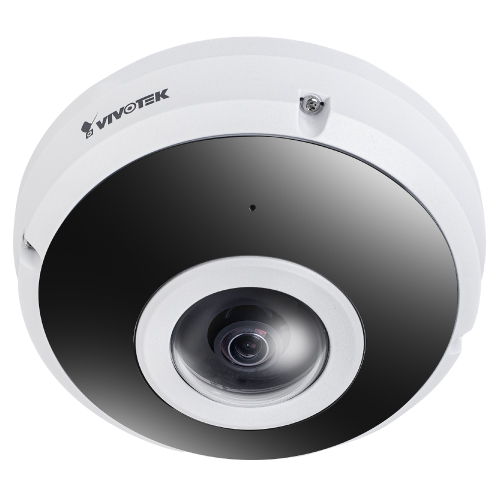

The 5-Megapixel FE9380-HV is the newest addition to the VIVOTEK 360° fisheye family. The FE9380-HV is a true day/night camera, with a removable IR-cut filter and 360° IR illumination up to 10 meters radius. It supports up to 30fps at full 5MP resolution as well as WDR Pro 120dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9380-HV to provide clear images 24 hours a day.

To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%*, enabling the FE9380-HV to record more detailed 360° images while simultaneously helping to reduce costs.
* Depending on scenes
H.265 compression Technology
30 fps @ 1920x1920
SNV (Supreme Night Visibility) for Low Light Conditions
Smart Stream III to Optimize Bandwidth Efficiency
WDR Pro for Improved Visibility in Extremely Bright and Dark Environments
Built-in IR Illuminators, Effective up to 10 Meters
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Trend Micro IoT Security
Built-in Microphone
Local Dewarping

System Information	Model FE9380-HV CPU Multimedia SoC (Sy stem-on-Chip) Flash 128 MB RAM 512 MB
Camera Features	Image Sensor 1/2.7" Progressive CMOS in 2688x1944 Max. Resolution 1920x1920 Lens Ty pe Fixed-f ocal Focal Length f = 1.16 mm Aperture F2.25 Iris Ty pe Fixed iris Field of View 180° (Horizontal) 180° (Vertical) 180° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day /Night Yes Remov able IR-cut Filter Yes IR Illuminators Built-in IR illuminators, effectiv e up to 10 meters with Smart IR, IR LED*4 Minimum Illumination 0.05 lux @ F2.25 (Color) <0.005 lux @ 2.25 (B/W) 0 lux with IR illumination on Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in) Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video	Video Compression H.265, H.264, MJPEG Maximum Frame Rate 24 f ps @ 1920x1920 (WDR on) 30 f ps @ 1920x1920 (WDR of f ) Maximum Streams 4 v ideo streams (Up to 9 conf igurable prof iles) S/N Ratio 63 dB Dy namic Range 120 dB Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III Image Settings General settings: v ideo title and time stamp ov erlay, v ideo orientation (f lip, mirror), day /night settings; Illuminators: illuminators, anti-ov erexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curv e), def og, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure lev el, iris adjustment, exposure time, gain control, iris mode), WDR; Priv acy mask; Scheduled prof ile settings Display Mode Client dewarping Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fishey e Three Regions Local dewarping Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
Audio	Audio Capability One-way Audio Audio Compression G.711, G.726 Audio Interface Built-in microphone Ef f ectiv e Range 5 meters
Network	Users Liv e viewing f or up to 10 clients Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute f orce attack event, cyberattack event, quarantine ev ent), user access log, user account management Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF Prof ile G, S, T supported, specification available at www.onv if .org
Solution Integration	Video Motion Detection Five-window video motion detection VADP Package Stratocast, Trend Micro IoT Security (1-y ear f ree trial)
Alarm and Event	Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, sy stem boot Event Action Event notification v ia email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card
General	Connectors RJ-45 cable connector f or 10/100Mbps Network/PoE connection LED Indicator System power and status indicator Power Input IEEE 802.3af PoE Class 0 Power Consumption Max. 12 W/3.8 W (IR on/of f ) Dimensions Ø 150 x 68.2 mm Weight 695 g Certifications EMC: CE (EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety : UL (UL 62368-1), CB (CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252) Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Humidity 90% Warranty 36 months System Requirements Operating System Microsoft Windows 10/8/7 Mac 10.12 (Chrome only ) Web Browser Chrome 58.0 or above Internet Explorer 10/11 Other Players VLC: 1.1.11 or above Included Accessories Packing Contents Quick installation guide, alignment sticker, screw pack, desiccant bag
