4MP 3.6mm  Advanced A.I.Dome w/MSD VTK

4MP 3.6mm Advanced A.I.Dome w/MSD VTK

Item #
CID41VT9
Brand
Vitek
Model
VTD-TND4RFA4

Color
White
Warranty
3 Year
Condition
Overstock from Manufacturer
If out of stock
5 to 7 Days
Add On Products
Product Description
Item Available in 5-7 Days - Overstock from Manufacturer

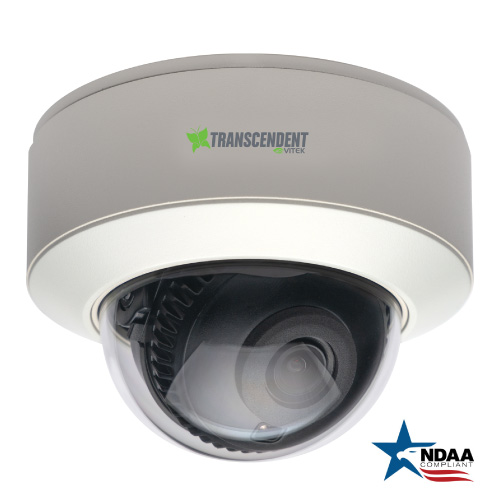

NDAA Compliant 4 MegaPixel Gen. IV Advanced A.I. Fixed IP Vandal Dome Camera

1/3.0” 4.0 Megapixel CMOS Image Sensor
Up to 30fps live view @ 4MP/3MP/1080p/720p/D1/CIF/480×240
Available with 3.6mm or 2.8mm Fixed Lens in Ivory or Charcoal:
VTD-TND4RFA4 (Ivory w/ 3.6mm)
VTD-TND4RFA4-2 (Ivory w/ 2.8mm),
VTD-TND4RFA4B (Charcoal w/ 3.6mm),
VTD-TND4RFA4B-2 (Charcoal w/ 2.8mm)
Supports Still Image Recording Function
Matrix IR (up to 100’ IR Range)
True Wide Dynamic Range
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D Digital Noise Reduction)
 Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
1 Channel Audio In + Built-in Mic*
Alarm In / Out
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
MicroSD Card Slot for Local Recording (up to 256GB)
IP67 Weather Resistance + IK10 Impact Protection
Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3), Pendant Mount (VT-TPDM-1 [reqs. VT-TJB03A]) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available [See Additional Mounting Options Below]
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research state, local, and federal laws regarding the implementation of audio surveillance


Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS

NDAA Compliant
Yes

Image Size
 4 MegaPixel (2592 × 1520)

Resolution
 4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080) / 720P(1280 × 720) / D1 / CIF(480 × 240)

Min. Illumination 0.005 lux@F1.6,AGC ON, 0 lux with IR

Lens
2.8mm or 3.6mm Fixed Iris Lens Options Available

Day / Night True Day / Night by ICR

IR LEDs / IR Distance Matrix Style IR / Up to 100’

Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Audio Compression G.711A / G.711U

Main-Stream
4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps, 50Hz: 1~50fps)

Sub / Third Stream
720P/D1/CIF (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) / D1/CIF/480×240 (60Hz: 1 ~ 30fps: 50Hz: 1~25fps)

Bit Rate / Type 64 Kbps ~ 8 Mbps / VBR, CBR

Wide Dynamic Range  120dB Super WDR

Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset

Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)

Image Setting  ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser

Gen. IV Advanced Analytics Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video

Smart Alarm
 Motion Detection, SD Card Error, SD Card Full

Region of Interest (ROI) Each ROI to be Configured Separately

Audio 1 Ch. Audio In + Built-in Mic*

Alarm
1 Ch. In / 1 Ch. Out

Local Storage Built-in MicroSD Card Slot (up to 256GB)

Remote Viewing CMS / Web Browser / Mobile (iOS/Android)

Supported Browsers IE, Chrome, Firefox, Safari and Edge

Connection Protocol  ONVIF

Protection IP67 Ingress + IK10 Impact

Power Input 12VDC / PoE

Power Consumption (12VDC) 350mA (LEDs Off) / 550mA (LEDs On)

Power Consumption (PoE) 5.5W

Working Environment
-22° ~140°F (-30°~60°C) / < 95% Humidity

Weight
23.64oz / 1.48lbs / .67kg (NET) 29.63oz / 1.85lbs / .84kg (SHIPPING)

Dimensions (Dia × H)
4.69” 3.44” (119mm 87.4mm)

* *Please research local, state and federal laws regarding the implementation of audio surveillance.
