HOME /4MP-33-12MM-MZ-IR-ADVANCED-AI-VITEK

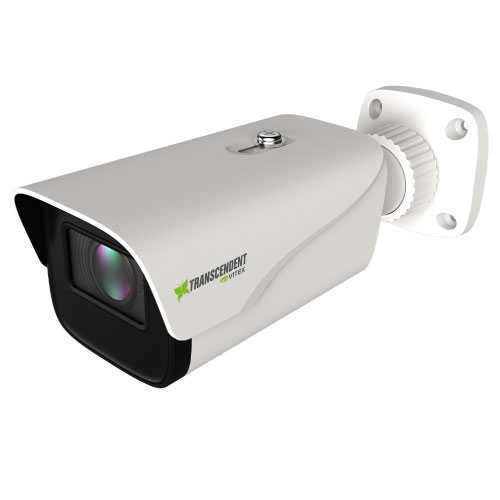

4MP 3.3-12MM MZ IR Advanced A.I. VITEK

4MP 3.3-12MM MZ IR Advanced A.I. VITEK

Item #
CIB4MZ
Brand
Vitek
Model
VTC-TNB4RMA3

Color
White
Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

Specifications


Image Sensor 1/3” 4.0 Megapixel Progressive Scan CMOS
Image Size 4 MegaPixel (2592 × 1520)
Resolution 4 MP (2592 × 1520) / 3 MP (2304 × 1296) /

1080P (1920 × 1080) / 720P (1280 × 720) /

D1/CIF (480 × 240)

Min. Illumination 0 Lux (IR LED ON)
Lens 2.8mm~12mm Motorized Varifocal Lens
Day/Night True Day/Night by ICR
IRs 2 Matrix Style IR LEDs
IR Distance Up to 165’
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
Audio Compression G.711A / G.711U
Main-Stream 4 MP, 2K, 3MP, 1080P, 720P(60Hz: 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz: 1~60fps; 50Hz: 1~50fps)
Bit Rate 64 Kbps ~ 8 Mbps
Wide Dynamic Range (WDR) 120dB Super WDR
Digital Noise Reduction (DNR) 3D-DNR
Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,
Sharpen, NR; adjustable through client software or web browser
Gen. III Advanced Analytics Face Detection, Target Counting, Intrusion, Region
Entrance / Exit, Line Crossing, Scene Change, Video Blur
Smart Alarm Motion detection, SD card error, SD card full
Region of Interest (ROI) Each ROI to be configured separately
Audio 1 Ch. Audio In*
Local Storage Built-in micro SD card slot up to 128GB
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
Connection Protocol ONVIF
Resistance IP67
Power Input 12VDC / PoE
Power Consumpt. (12VDC) 350mA (LEDs Off) / 600mA (LEDs On)
Power Consumpt. (PoE) < 9.5W
Working Environment -22° ~140° / < 95% Humidity
Weight 24.34oz / 1.52lb (690g)
Dimensions 8.68 × 3.15 × 2.78” (220.5 × 80.1 × 70.5mm)
