VTD-TND4FLN-2

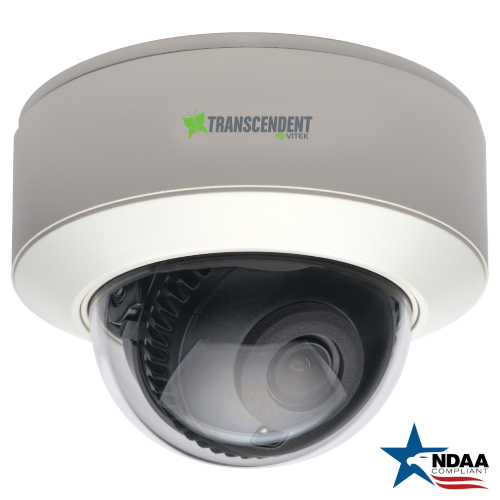

Transcendent Lite 4 MegaPixel Fixed Lens IP Dome Camera w/Basic Analytics
1/3” 4.0 Megapixel CMOS Image Sensor
Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
2.8mm Fixed Iris Lens
Matrix IR with up to 100’ IR Range
True 120dB Wide Dynamic Range
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
1 Ch. Audio In + Built-in Mic*
Programmable Analytics: Region Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection
Compression – Main stream: H.265+ / H.265 / H.264+ / H.264
Compression – Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance + IK10 Impact Rating
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
|
Image Sensor & Size
|
1/3” 4.0 Megapixel CMOS Image Sensor
|
|
| Resolution |
4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.005 lux @F1.6, AGC ON; 0 lux with IR
|
|
Lens 2.8mm
|
Fixed Iris Lens
|
|
| Day / Night |
True Day/Night by ICR
|
|
IR LEDs / IR Distance
|
1 Matrix IR up to 100’ Range
|
|
| Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
| Main-Stream |
60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)
|
|
Sub-Stream 60Hz :
|
720P(1~30fps)/D1 /CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)
|
|
| Bit Rate |
64Kbps ~ 8Mbps
|
|
| Bit Rate Type |
VBR / CBR
|
|
| BLC Control |
Backlight & Highlight Compensation
|
|
Wide Dynamic Range (WDR)
|
True WDR (120dB)
|
|
| Digital Noise Reduction (DNR) |
XD-DNR (2D-DNR & 3D-DNR)
|
|
| Image Setting |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Noise Reduction, etc., Adjustable Through Client Software or Web Browser
|
|
Programmable Analytics
|
Region Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection
|
|
Smart Alarm
|
Motion Alarm, SD Card Error, SD Card Full
|
|
Region of Interest (ROI)
|
Each ROI to be Configured Separately
|
|
| Network |
RJ45
|
|
Audio
|
1 Ch. Audio In + Built-in Mic*
|
|
Storage
|
MicroSD Card Slot (up to 256GB)
|
|
| Remote Viewing |
VMS / Web Browser / Mobile (iOS/Android)
|
|
Reset
|
YES
|
|
| Supported Browsers |
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
|
|
Connection Protocol
|
ONVIF
|
|
Ingress Protection
|
IP67 + IK10 Impact Rating
|
|
| Power Input |
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 300mA (LEDs Off) / 450mA (LEDs On)
|
|
| Power Consumption (PoE) |
<4.5W
|
|
Working Environment
|
-22° ~140°F (-30°~60°C) / < 95% Humidity
|
|
| Weight NET |
(SHIPPING) 22.58oz / 1.41lb / 640g (28.22oz / 1.76lb / 800g)
|
|
| Dimensions |
(Dia × H) 3.44 × 4.69” [87.4 × 119mm]
|
|
| **** |
*Please research local, state and federal laws regarding the implementation of audio surveillance.
|
