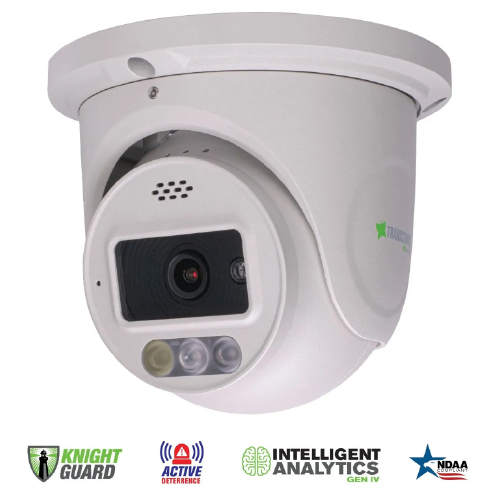

VTC-TNT4FADW-2
1/3.0” 4.0 MegaPixel CMOS Image Sensor
Up to 30fps live view @ 4 MegaPixel (4K) (2592 × 1520)
2.8mm Fixed Iris Lens
Vitek Knight Guard Full Color at Night Camera
Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import
White Light or Matrix IR / Up to 130’
True Wide Dynamic Range (120dB)
Triple Streaming: H.265+, H.264+ & MJPEG Compression
XD-DNR (3D & 2D-DNR) Noise Reduction
Backlight / Highlight Compensation, DeFog, Hardware Reset, ROI
GEN IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing,Target Counting (All by Human / Motor Vehicle Classification) Face Detection, Heat Map, Video Blur, Color Detection, Abnormal Video, and more!
1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic + Built-in Speaker*
1 Ch. Alarm In + 1 Ch. Alarm Out
Built-in MicroSD Card Slot for Local Recording (up to 256GB)
Smart Alarm: Motion Detection, Sensor Alarm, SD Card Error / Full, IP Address Conflict, Cable Connection
IP66 Weather Resistance
Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM01 [reqs. VT-TJB021], VT-TWMT-4) and Pendant Mounts (VT-TPDM-2 [reqs.VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021]) See Below
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance
|
Image Sensor:
|
1/3.0” 4.0 MegaPixel Progressive Scan CMOS
|
|
| Image Size: |
4 MegaPixel (2592 × 1520)
|
|
Resolution:
|
4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296),1080P (1920 ×1080), 720P (1280×720), D1, VGA(640×480), CIF, 480 × 240
|
|
Frame Rate:
|
30fps @ 4MP and Lower
|
|
| Main-Stream: |
4MP/2K/3MP/1080P/720P (60Hz: 1~30fps)
|
|
Sub-Stream:
|
1080P/720P/D1/VGA/CIF
|
|
| Third-Stream: |
D1/VGA/CIF/480×240 (60Hz: 1~30fps)
|
|
| Lens: |
2.8 mm@F1.6, H.FoV:96°, V.FoV: 54.5°, D.FoV:113°
|
|
Angle Adjustment:
|
Pan: 0°~360°
Tilt:0°~75°
Rotation: 0°~360°
|
|
| Day/Night and Night Vision: |
True Day / Night by ICR
Night Vision / Range: White Light or Matrix IR / Up to 130’
|
|
| Video |
Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG [Triple Streaming]
|
|
| Audio: |
Audio Compression: G.711A / G.711U
1Ch. Audio Input
1Ch. Audio Output + Built-in Speaker + Built-in Microphone*
CVBS Video Out: No
Bit Rate / Type: 64 Kbps ~ 8 Mbps / VBR, CBR
|
|
| Alarm: |
1Ch. Alarm Input
1Ch. Alarm Output
|
|
Bit Rate / Type:
|
64 Kbps ~ 12 Mbps / VBR, CBR
|
|
Wide Dynamic Range:
|
120dB Super WDR
|
|
Other Features:
|
Highlight Compensation
Backlight Compensation
DeFog
Hardware Reset
Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)
|
|
Image Setting:
|
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Range Sharpness, Image Flip, Image Mirror, Noise Reduction (Adjustable through client software or web browser)
|
|
Advanced Analytics:
|
Intrusion Detection
Line Crossing
Target Counting [All by Human / Motor Vehicle Classification]
Face Detection
Scene Change
Video Blur
Abnormal Color Detection
Heat Map
|
|
Smart Alarm:
|
Motion Detection
Sensor Alarm
SD Card Error
SD Card Full
IP Address Conflict
Cable Connection
|
|
Region of Interest (ROI):
|
Each ROI to be Configured Separately
|
|
Sound / Light Warning:
|
Flashing White Lights (Red and Blue) + Speaker with User-Defined Warning Voice Import
|
|
DORI:
|
Detect: 195.73' (59.66m)
Observe: 72.28’ (23.86m)
Recognize: 39.14’ (11.93m)
Identify: 19.55’ (5.96m)
|
|
Local Storage:
|
Built-in MicroSD Card Slot (up to 256GB)
|
|
Remote Viewing:
|
VMS / Web Browser / Mobile (iOS/Android)
|
|
| Online Connection: |
Supports Simultaneous Monitoring for up to 10 Users
Support multi-stream real-time transmission
|
|
| Supported Browsers: |
IE11 (plug-in required) / Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
|
|
| Network Connection: |
RJ45 10M/100M Self-Adaptive Ethernet port
|
|
| Network Protocols: |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
|
|
| Connection Protocol: |
ONVIF
|
|
| Ingress Protection: |
IP66
|
|
| Security: |
Video Encryption
Firmware Encryption
HTTPs Encryption
Configuration Encryption
Illegal Login Lock
IP Address Filtering
802.1x Authentication
Basic and Digest Authentication for HTTP/HTTPs
|
|
Power
|
PoE: Yes , IEEE802.3af
Power Input: 12VDC / PoE
Power Consumption (PoE): <12W
Power Consumption (12VDC): 550mA (LEDs Off) / 1050mA (LEDs On)
|
|
| Weight: |
NET (GROSS) 22.57 oz. / 1.41 lbs. / 640g, 28.22 oz / 1.76 lbs / 800g
|
|
| Dimensions (Dia × H): |
5.15” × 4.34” (131mm × 110mm)
|
|
| Power Consumption (12VDC): |
550mA (LEDs Off) / 1050mA (LEDs On)
|
|
| Certificates: |
CE, FCC — Complies with Directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006)
*Please research local, state, and federal law regarding the implementation and use of audio surveillance
|
