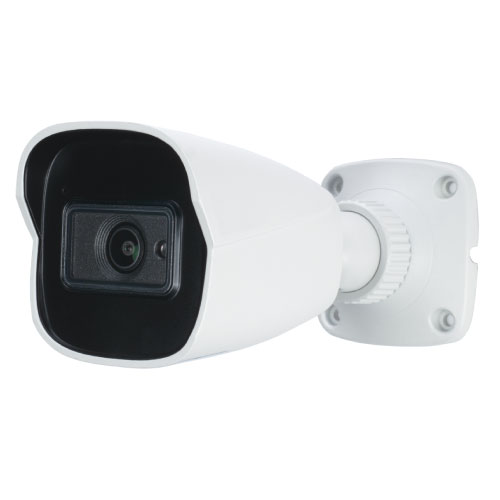

Transcendent 4 MegaPixel Indoor/Outdoor Fixed Lens WDR IP Bullet Camera
• 1/2.7” 4.0 Megapixel CMOS Image Sensor
• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• Supports Still Image Recording Function
• Matrix IR with up to 100’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line Crossing, Object Removal, Video Blur Detection
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Included Wall / Ceiling Mount, Optional Junction Box Mount (VT-TJB08) available. See other mounting options below.
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
|
Image Sensor
|
1/2.7” 4.0 Megapixel CMOS Image Sensor
|
|
| Image Size |
4 MegaPixel (2560 × 1440)
|
|
Resolution
|
4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080),
720P(1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.011 lux @F1.2, AGC ON; 0 lux with IR, 0.04 lux @ F2.2, AGC ON; 0 lux with IR
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
Still Image Recording
|
Yes, Supports Still Image Recording Functions
|
|
| Day/Night |
True Day/Night by ICR
|
|
| IR LEDs / IR Distance |
1 Matrix / 100’
|
|
Video Compression
|
H.265 / H.264
|
|
| Main-Stream |
60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)
|
|
| Sub-Stream |
60Hz : 720P(1~15fps)/D1 /CIF (1~30fps), 50Hz: 720P(1~12fps)/ D1(1~25fps)/CIF (1~25fps)
|
|
| Third Stream |
60Hz : D1/CIF/480×240 (1~30fps), 50Hz: D1/CIF/480×240 (1~25fps)
|
|
| Bit Rate |
64Kbps ~ 5Mbps
|
|
| Bit Rate Type |
VBR / CBR
|
|
| Other Camera Features |
BLC, HLC, Defog
|
|
| Wide Dynamic Range (WDR) |
D-WDR (Digital Wide Dynamic Range)
|
|
| Digital Noise Reduction (DNR) |
XD-DNR (2D-DNR & 3D-DNR)
|
|
| Image Setting |
Saturation, Brightness, Chroma, Contrast, WDR, Noise reduction
|
|
| Analytics |
Object Removal, Scene Change, Video Blur Detection, Intrusion and Line Crossing
|
|
| Smart Alarm |
Motion Alarm, SD Card Error, SD Card Full
|
|
| Region of Interest (ROI) |
Each ROI to be Configured Separately
|
|
| Network |
RJ45
|
|
Storage
|
MicroSD Card Slot (Up to 128GB)
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
| Connection Protocol |
ONVIF
|
|
| Resistance |
IP67 Weather Rating
|
|
| Power Input |
12VDC / PoE
|
|
Power Consumption (12VDC)
|
150mA (LEDs Off) / 320mA (LEDs On)
|
|
| Power Consumption (PoE) |
< 5W
|
|
| Working Environment |
-22° ~140° / < 95% Humidity
|
|
Weight Dimensions: L × W × H
|
13.4 oz. / .84 lbs. / 380g
6.59” × 2.93” × 2.93” (167.5mm × 74.5mm × 74.5mm)
|
