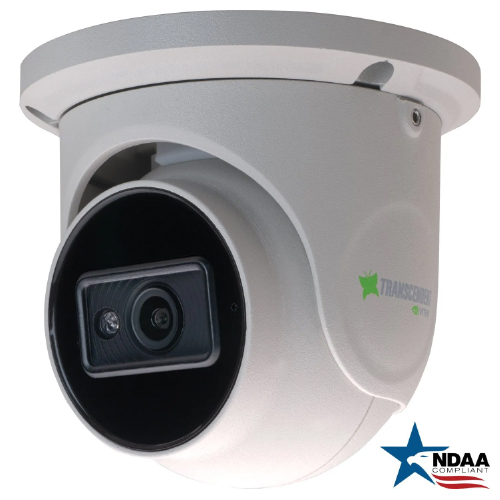

VTC-TNT4FLN-2
1/3” 4.0 Megapixel CMOS Image Sensor
Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
2.8mm Fixed Iris Lens
Matrix IR with up to 100’ IR Range
True 120dB Wide Dynamic Range
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
1 Ch. Audio In + Built-in Mic*
Programmable Analytics: Region Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection
Compression – Main stream: H.265+ / H.265 / H.264+ / H.264
Compression – Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
MicroSD Card Slot for Local Recording (Up to 256GB)
Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
|
Image Sensor & Size
|
1/3” 4.0 Megapixel CMOS Image Sensor
|
|
| Resolution |
4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.005 lux @F1.6, AGC ON; 0 lux with IR
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
| Day / Night |
True Day/Night by ICR
|
|
IR LEDs / IR Distance
|
1 Matrix IR up to 100’ Range
|
|
Video Compression
|
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
Main-Stream
|
60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)
|
|
Sub-Stream
|
60Hz : 720P(1~30fps)/D1 /CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)
|
|
| Bit Rate |
64Kbps ~ 8Mbps
|
|
Bit Rate Type
|
VBR / CBR
|
|
| BLC Control |
Backlight & Highlight Compensation
|
|
Wide Dynamic Range (WDR)
|
True WDR (120dB)
|
|
| Digital Noise Reduction (DNR) |
XD-DNR (2D-DNR & 3D-DNR)
|
|
| Image Setting |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Noise Reduction, etc., Adjustable Through Client Software or Web Browser
|
|
| Programmable Analytics |
Region Intrusion, Object Removal / Missing, Scene Change, Line Crossing, Video Blur Detection, Video Cast Detection
|
|
| Smart Alarm |
Motion Alarm, SD Card Error, SD Card Full
|
|
| Region of Interest (ROI) |
Each ROI to be Configured Separately
|
|
| Network |
RJ45
|
|
Audio
|
1 Ch. Audio In + Built-in Mic*
|
|
Storage
|
MicroSD Card Slot (up to 256GB)
|
|
Remote Viewing
|
VMS / Web Browser / Mobile (iOS/Android)
|
|
Reset
|
YES
|
|
Supported Browsers
|
Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
|
|
| Connection Protocol |
ONVIF
|
|
Ingress Protection
|
IP67
|
|
Power Input
|
12VDC / PoE
|
|
| Power Consumption |
(12VDC) 300mA (LEDs Off) / 600mA (LEDs On)
|
|
Power Consumption (PoE)
|
<5W
|
|
| Working Environment |
-22°~140°F (-30°C ~ 60°C) / < 95% Humidity
|
|
Weight
|
(Net) 16.23oz / 1.01lb / 460g
|
|
| Weight |
(Shipping) 19.75oz / 1.235lb / 560g
|
|
| Dimensions |
(Dia × H) 3.77 × 4.25” [95.7 × 108mm]
|
|
|
*Please research local, state and federal laws regarding the implementation of audio surveillance
|
