Item Available in 5-7 Days - Overstock from Manufacturer

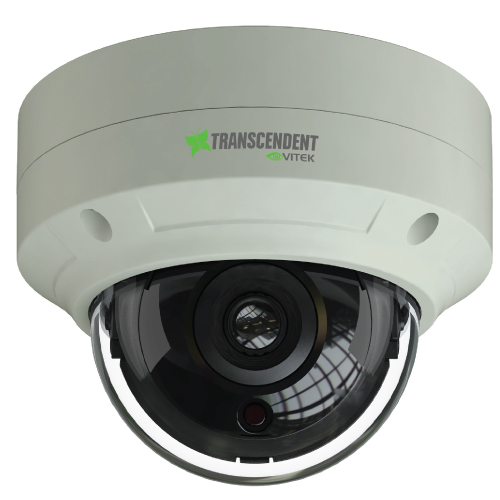

4 MegaPixel Gen. III Advanced A.I. Fixed IP Vandal Dome Camera
• 1/3” 4.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592×1520)
• 2.8mm Fixed Lens Configurations:
• Supports Still Image Recording Function
• 1 Matrix IR (up to 100’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Fully Programmable Gen. III Advanced Analytics: Face Detection, Target Counting, Intrusion, Region Entrance / Exit, Line Crossing, Scene Change, Video Blur
• 1 Channel Audio + Built-in Mic*
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (128GB)
• IP67 Weather Resistance + IK10 Impact
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.
|
|---|
Image Sensor
|
1/3” 4.0 Megapixel Progressive Scan CMOS
|
|
| Image Size |
4 MegaPixel (2592 × 1520)
|
|
Resolution
|
4 MP (2592 × 1520) / 3 MP (2304 × 1296) /
1080P (1920 × 1080) / 720P (1280 × 720) /
D1/CIF (480 × 240)
|
|
Min. Illumination
|
0 Lux (IR LED ON)
|
|
| Lens |
2.8mm Fixed Iris Lens Options
|
|
Still Image Recording
|
Yes, Supports Still Image Recording Functions
|
|
Day/Night True
|
Day/Night by ICR
|
|
IR LEDs
|
1 Matrix Style IR LED
|
|
IR Distance
|
Up to 100’
|
|
| Video Compression Smart |
H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
|
|
| Audio Compression |
G.711A / G.711U
|
|
| Main-Stream |
MP, 2K, 3MP, 1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz: 1~60fps; 50Hz: 1~50fps)
|
|
| Bit Rate |
64 Kbps ~ 8 Mbps
|
|
| WDR |
120dB Super WDR
|
|
| DNR |
XD-DNR (2D-DNR & 3D-DNR)
|
|
| Quality |
VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
|
Image Setting
|
ROI, Saturation, Brightness, Chroma, Contrast,
Wide Dynamic, Sharpen, NR; adjustable through client software or web browser
|
|
| Intelligent Analytics |
Abnormal Video, Face Detection, Regional Intrusion
Detection, Regional Entrance / Exiting Detection,
Line Crossing, Target Counting Detection
|
|
| Smart Alarm |
Motion detection, SD card error, SD card full
|
|
| ROI |
Each ROI to be configured separately
|
|
| Audio |
1 Ch. Audio In
|
|
| Local Storage |
Built-in micro SD card slot up to 128GB
|
|
| RS485 |
× 1
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
| Connection Protocol |
ONVIF
|
|
| Weather and Impact Rating |
IP67 + IK10
|
|
| Power Input |
12VDC / PoE
|
|
| Power Consumpt. |
(12VDC) 120mA (LEDs Off) / 480mA (LEDs On)
|
|
| Power Consumpt. |
(PoE) < 7W
|
|
| Working Environment |
-22° ~140° / < 95% Humidity
|
|
| Weight |
1.31 lbs. / 593g
|
|
| Dimensions |
4.57” x 3.58” (116mm×91mm) Dia x H
|
