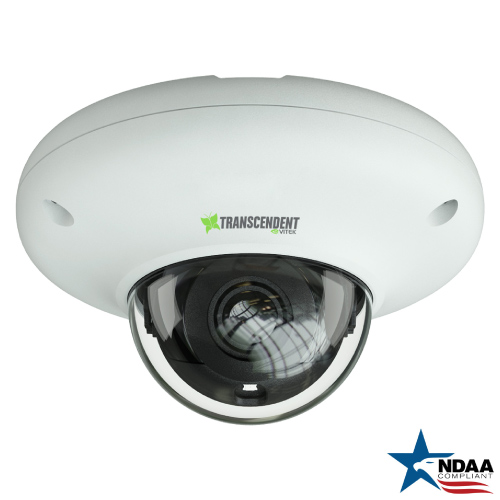

4 MegaPixel NDAA Compliant Gen. IV Advanced A.I. Fixed IP Mini Saucer Vandal Dome Camera
1/3” 4.0 Megapixel CMOS Image Sensor
Up to 30fps live view @ 4MP (2592×1520)
2.8mm Fixed Lens • Matrix IR (up to 65’ IR Range)
True Wide Dynamic Range
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
H.265+, H.265, H.264+, H.264 & MJPEG Compression
1 Ch. Audio In + Built-in Mic*
Remote Viewing via CMS, InE, and iOS & Android Apps
ONVIF Compliant
MicroSD Card Slot for Local Recording (256GB)
IP66 Ingress Protection
Optional Wall Mount (VT-TWMT-3) Available
12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.
|
Image Sensor
|
1/3” 4.0 Megapixel CMOS Image Sensor
|
|
| Image Size |
4 MegaPixel (2592 × 1520)
|
|
Resolution
|
4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080) / 720P(1280 × 720) / D1 / CIF(480 × 240)
|
|
Min. Illumination
|
0.005 lux@F1.6, AGC ON; 0 lux with IR
|
|
| Lens |
2.8mm Fixed Iris Lens
|
|
Day / Night
|
True Day / Night by ICR
|
|
IR LEDs / IR Distance
|
2 Matrix / 65’
|
|
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG
|
|
Audio Compression
|
G.711A / G.711U
|
|
Main-Stream
|
1~30fps: 4MP, 3MP, 1080P, 720P, D1, CIF, 480×240
|
|
| Bit Rate |
64Kbps ~ 8Mbps
|
|
| Bit Rate Type |
VBR / CBR
|
|
| Wide Dynamic Range (WDR) |
120dB Super WDR
|
|
| Digital Noise Reduction (DNR) |
XD-DNR (2D-DNR & 3D-DNR)
|
|
Other Features
|
Backlight Compensation, Highlight Compensation, DeFog, Reset
|
|
| Image Setting |
Saturation, Brightness, Contrast, WDR, Noise Reduction
|
|
| Gen. IV Advanced Analytics |
Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification]
Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
|
|
Smart Alarm
|
Motion Alarm / SD Card Error / SD Card Full
|
|
| Region of Interest (ROI) |
Each ROI to be Configured Separately
|
|
| Network |
RJ45
|
|
| Audio |
1 Ch. Audio In + Built-in Mic*
|
|
| Local Storage |
MicroSD Card Slot (Up to 256GB)
|
|
| Remote Viewing |
CMS / Web Browser / Mobile (iOS/Android)
|
|
| Supported Browsers |
IE, Edge, Chrome and Safari (no plug-in required)
|
|
| Connection Protocol |
ONVIF
|
|
| Weather Protection |
IP66 Weather Rating
|
|
| Power Input |
12VDC / PoE
|
|
| Power Consumption |
12VDC / POE 350mA (LEDs Off), 500mA (LEDs On) / <6W
|
|
| Working Environment |
-22° ~140° / < 95% Humidity
|
|
Weight, Dimensions
|
Dia × H 13.44oz / .84lbs / 380g, 4.33 × 2.35” (110 × 59.8mm)
|
