VTC-TNT4MADW

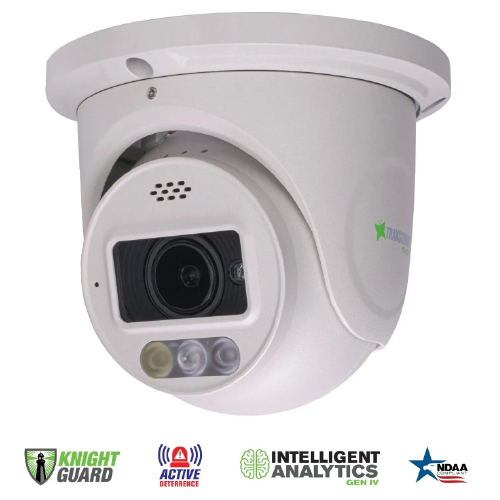

Transcendent 4 MegaPixel WDR Knight Guard + Active Deterrence Motorized AF IP Turret Camera
1/3.0” 4.0 MegaPixel CMOS Image Sensor
Up to 30fps live view @ 4 MegaPixel (2592 × 1520)
2.8~12mm Motorized Autofocus Variable Lens
Vitek Knight Guard Full Color at Night Camera
Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import
White Light or Matrix IR / Up to 130’
True Wide Dynamic Range (120dB)
Triple Streaming: H.265+, H.264+ & MJPEG Compression
XD-DNR (3D & 2D-DNR) Noise Reduction
Backlight / Highlight Compensation, DeFog, Hardware Reset, ROI
GEN IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing,Target Counting (All by Human / Motor Vehicle Classification) Face Detection, Heat Map, Video Blur, Color Detection, Abnormal Video, and more!
1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic + Built-in Speaker*
1 Ch. Alarm In + 1 Ch. Alarm Out + CVBS
Built-in MicroSD Card Slot for Local Recording (up to 256GB)
Smart Alarm: Motion Detection, Sensor Alarm, SD Card Error / Full, IP Address Conflict, Cable Connection
IP66 Weather Resistance
Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM01 [reqs. VT-TJB021], VT-TWMT-4) and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021]) See Below
12VDC & PoE (Power over Ethernet) Operation
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance. research local, state and federal laws regarding the implementation of audio surveillance.
|
|---|
Image Sensor
|
Type: 1/3.0” 4.0 MegaPixel Progressive Scan CMOS
|
|
| Image Specifications |
Size: 4 MegaPixel (2592×1520)
Resolution:
4MP (2592×1520)
2K (2560×1440)
3MP (2304×1296)
1080P (1920×1080)
720P (1280×720)
D1, VGA(640×480), CIF, 480 × 240
|
|
Frame Rate
|
30fps @ 4MP and Lower
|
|
Main Stream
|
Resolutions: 4MP/2K/3MP/1080P/720P
Frame Rate: 1~30fps
|
|
| Sub Stream |
Resolutions: 720P/D1/VGA/CIF
Frame Rate: 1~30fps
|
|
Third Stream
|
Resolutions: D1/VGA/CIF/480×240
Frame Rate: 1~30fps
|
|
| Min. Illumination |
0.02lux @ F1.6 with AGC ON
0 lux with IR
0 lux with LED
|
|
| Lens |
Specifications: 2.8~12mm@F1.4
Horizontal Field of View (H. FoV): 96° ~32.33°
Vertical Field of View (V. FoV): 53.67° ~ 19.63°
Diagonal Field of View (D. FoV): 114.17° ~ 36.33°
|
|
Angle Adjustment
|
Pan: 0°~360°
Tilt:0°~75°
Rotation: 0°~360°
|
|
| S/N Ratio |
=50dB
|
|
| Day/Night |
Day/Night : True Day/Night by ICR
Night Vision/Range; White Light or Matrix IR / Up to 130’
Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG [Triple Streaming]
|
|
Audio Compression
|
G.711A / G.711U
|
|
| Audio |
Input: 1Ch. Audio
Output: 1Ch. Audio + Built-in Speaker + Built-in Microphone
|
|
| Alarm |
Input: 1Ch. Alarm
Output: 1Ch. Alarm
|
|
| Bit Rate/Type |
64 Kbps ~ 8 Mbps / VBR, CBR
|
|
| Wide Dynamic Range |
120dB Super WDR
|
|
| Other Features |
Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
|
|
| Digital Noise Reduction |
XD-DNR (3D-DNR & 2D-DNR)
|
|
| Image Setting |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic Range Sharpness, Image Flip, Image Mirror, Noise Reduction (Adjustable through client software or web browser)
|
|
| Advanced Analytics |
Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face Detection, Scene Change, Video Blur, Abnormal Color Detection, Heat Map
|
|
| Smart Alarm |
Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Connection
|
|
| Region of Interest (ROI) |
Each ROI to be Configured Separately
|
|
| Sound/Light Warning |
Flashing (Red and Blue) + Speaker with User-Defined Warning Voice Import
|
|
| DORI |
Detect: 195.73 (59.66m)
Observe: 72.28’ (23.86m)
Recognize: 39.14’ (11.93m)
Identify: 19.55’ (5.96m)
|
|
| Local Storage |
Built-in MicroSD Card Slot (up to 256GB)
|
|
| Remote Viewing |
VMS / Web Browser / Mobile (iOS/Android)
|
|
| Online Connection |
Online Connection
Supports Simultaneous Monitoring for up to 10 Users, Support multi-stream real-time transmission
Supported Browsers
IE11 (plug-in required) / Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Network Connection
RJ45 10M/100M Self-Adaptive Ethernet port
Network Protocols
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
|
|
| Connection Protocol |
ONVIF
|
|
Ingress Protection
|
IP66
|
|
| Security |
Video Encryption, Firmware Encryption, HTTPS Encryption, Configuration Encryption, Illegal Login Lock, IP Address Filtering, 802.1x Authentication, Basic and Digest Authentication for HTTP/HTTPS
|
|
| Power |
PoE
Yes, IEEE802.3af
Power Input
12VDC / PoE
Power Consumption
(PoE) <12W
(12VDC) 550mA (LEDs Off) / 1050mA (LEDs On)
|
|
| Working Environment |
Working Environment
-22° 140°F (-30°60°C) / < 95% Humidity
Storage Environment
-22° 149°F (-30°65°C) / < 95% Humidity
|
|
Dimensions & Weight
|
Weight
Net (Gross): 22.57oz / 1.41lb / 640g (28.22 oz / 1.76lb / 800g)
Dimensions
Dia × H: 5.15” × 4.34” (131mm × 110mm)
|
|
| Certificates |
CE, FCC — Complies with Directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006)
|
