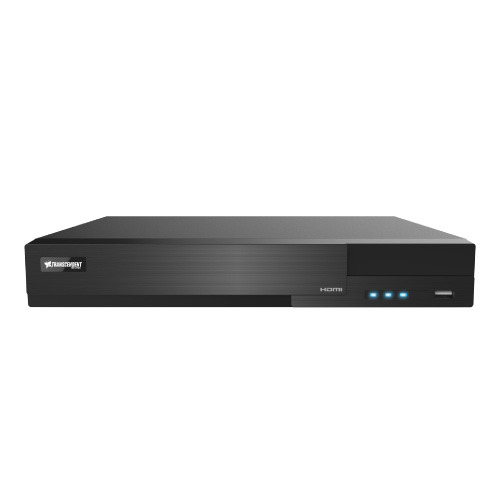

Transcendent Series 4 Channel 5 MegaPixel 5-In-1 HD-TVI / AHD / CVI / 960H / IP Digital Video Recorder
4 Channels HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 5 MegaPixel + IP Camera Support with the ability to substitute 4 HDA inputs for IP cameras
Additional IP Camera support: 1 Additional IP Cameras (up to 3 MegaPixel) can be added for a total of 5 Cameras
Live View: TVI/AHD: 5MP @ 20fps; 4MP, 3MP, 1080P, 720P, WD1 @ 30fps / CVI: 1080P, 720P @ 30fps
Recording: 5MP: 10fps / 4MP/3MP: 15fps / 4MP lite/1080P/720P/WD1: 30fps • HDMI (2560×1440,1920×1080,1280×1024), VGA (1080p), and BNC Spot Video Output
Simple plug and play, point-to-point connection from camera to DVR
H.264 Compression FEATURES • 2-Way Audio • PTZ Control over RS-485 / Control over Coax (CoC)
4 Alarm inputs / 1 Alarm Output
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
1 Internal SATA2/SATA3 HDD Slot supporting up to 12TB (1 x 12TB HDD)
Applications for iOS & Android • Remote Viewing over the Internet via Web Browser or LAN
Mac OS® Client & CMS Central Management Software Included
Supports both Dynamic and Static IP Addresses
Control locally via USB Mouse or IR Remote control
|
Video Inputs
|
4 Channels HD-TVI/AHD/CVI/Analog BNC Inputs Supporting up to 5 MegaPixel
|
|
Hybrid Inputs
|
4 HD Analog inputs may be substituted for IP Cameras (plus one additional IP Cameras up to 3MP) for a complete Hybrid solution (up to 5 cameras)
|
|
IP Camera
|
Support 1 IP Camera (3 MegaPixel @ 30fps Max)
|
|
Compression
|
H.264 High profile
|
|
Analog Recording
|
5MP: 10fps / 4MP/3MP: 15fps / 4MP lite/1080P/720P/WD1: 30fps
|
|
Network (IP) Recording
|
3MP / 1080P / 960P / 720P Real Time (30fps)
|
|
Local Playback
|
4 CH – TVI/AHD: 5MP @ 10fps; 4MP, 3MP, 1080P, 720P, WD1 @ 30fps / CVI: 1080P, 720P @ 30fps
|
|
| OS Embedded |
Linux
|
|
Video Output
|
1 x HDMI (2560×1440,1920×1080,1280×1024) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
|
|
| Multi Operation Pentaplex: |
Live Display / Record / Playback / Backup / Remote Access
|
|
| Audio Input: |
RCA x 4 / Output: RCA x 1
|
|
| Two-Way Audio |
Yes
|
|
| Bit Rate |
768Kbps ~ 8Mbps
|
|
| Encode |
VBR / CBR
|
|
| Quality Levels |
6 level
|
|
| Recording Modes |
Manual, Timer, Motion, Sensor
|
|
| File Management |
Lock, Unlock, Reserve time, Redundancy
|
|
| Search |
Time, Motion, Sensor, Single, or Multi-channel
|
|
Function
|
Play, Pause, FF, FB, Digital zoom
|
|
| Alarm In/Out |
4 Alarm inputs / 1 Alarm Output
|
|
| Alarm Modes |
Sensor, Motion, Video loss
|
|
Alarm Triggering
|
Record, PTZ move, Relay out, E-mail, etc
|
|
| Network Interface |
RJ45: 10/100Mbps × 1
|
|
| Remote Playback |
4CH
|
|
Dual-stream
|
Individual Network Video Stream and local recording stream, set separately
|
|
| Remote Users |
10 users online, dual stream
|
|
| Remote Viewing |
VMS / Web Browser / Mobile (iOS/Android)
|
|
| RS485 |
RS485 x1 (for PTZ)
|
|
| PTZ Protocol |
ontrol over Coax (CoC) Pelco D / Pelco P
|
|
| Network Protocols |
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
|
|
| SATA HDD |
Up to 12TB (1 x 12TB)
|
|
| USB |
1 Front (USB 2.0) & 1 Rear (USB 3.0) for mouse and USB backup devices
|
|
| Accessories |
Remote controller, SATA cable, USB mouse
|
|
| Power Consumption |
= 8W (Without HDD)
|
|
| Power Supply DC: |
12V
|
|
Dimensions (WxHxD)
|
10.04” x 1.65” x 8.27” (255mm × 42mm × 210mm)
|
