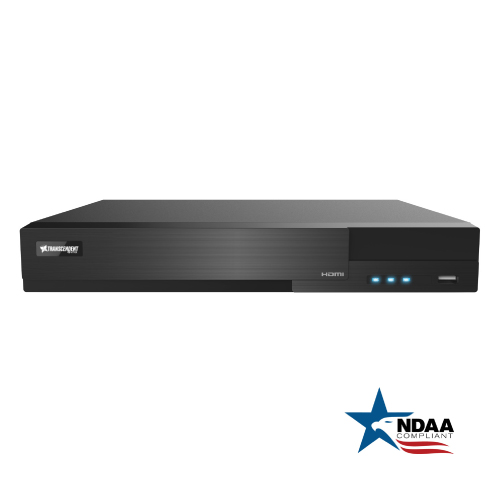

Transcendent 4 Channel 8 MegaPixel (4K) H.265 Real Time Network Video Recorder with 4K Output and 4 Port POE Switch
NDAA Compliant
4 Channel Stand-alone Real-time IP Network Video Recorder
Full 8 Megapixel [4K] Real-time recording (120fps) with 120fps Playback
4K HDMI & VGA Video Outputs
H.265S / H.265+ / H.265 / H.264 Video Compression
Tripwire, Intrusion, Object Detected/Missing, Exception, Crowd
Density, People Intrusion and People Counting, License Plate
Recognition, Human / Vehicle Classification
Plug and Play & Auto configuration for many leading ONVI compliant IP Camera models
Internal 4-Port PoE Switch
1 Gigabit LAN Port
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
1 Internal SATA2 / 3 HDD Slot w/ up to 10TB (1 x 10TB HDD) Internal Storage
Network Based PTZ Control
Applications for iOS® & Android®
Remote Viewing over the Internet via Web Browser or LAN
Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller]
Supports both Dynamic and Static IP Addresses
Web-based remote configuration
Control locally via USB Mouse or with the Included IR Remote control
3 Year Warranty
|
Video Input
|
/ Resolution 4 IP Channels up to 8 (4k) MegaPixel
|
|
| Main Monitor Output |
1 x 4K HDMI / 1 x 1080P VGA
|
|
Multi Operation
|
Pentaplex: Live Display / Record / Playback / Backup / Remote Acess
|
|
Recording Compression
|
H.265S / H.265+ / H.265 / H.264
|
|
OS
|
Embedded Linux
|
|
Recording
|
120fps (30fps per channel)
|
|
| Audio over IP Inputs |
4 (1 Audio Channel per IP Camera over IP, IP Camera Dependent)
|
|
| Local Audio In/Out |
IN: RCA x 1CH / OUT: RCA x 1CH
|
|
Two-Way Audio
|
YES
|
|
Encode
|
CBR
|
|
| Quality Levels |
11 level (According to Bit Rate)
|
|
| Recording Modes |
Manual / Timer / Motion / Sensor
|
|
| Local Playback |
4CH
|
|
| Analytics |
License Plate Recognition, Tripwire, Intrusion, Object Detected / Missing, Exception, Crowd Density, People Counting, Human/Vehicle Classification
|
|
| Alarm Modes |
Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection
|
|
| Search |
Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search
|
|
| Alarm Inputs |
IP Camera Dependent (No Local Input)
|
|
| Alarm Triggering |
Record, Snap, PTZ move, Alarm out, E-mail, etc
|
|
| Network Interface |
RJ45 x 1
|
|
| POE ports |
RJ45 x 4, with POE
|
|
| PoE Standard |
802.3af 12W max per port
|
|
| Total PoE Budget |
48W all ports
|
|
| Bit Rate (Per Camera) |
512Kbps ~ 10 Mbps (Adjustable)
|
|
| Total Bandwidth |
40Mbps Incoming / 40Mbps Outgoing
|
|
Dual-stream
|
Individual Network Video Stream and local recording stream, set seperately
|
|
| Network Protocols |
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet
|
|
| Internet-streaming |
Total 28 task resources (Local+Remote) 4 CH IE playback
|
|
Remote Viewing
|
CMS / Web Browser / Mobile Platforms
|
|
Remote Users
|
10 Simultaneous Online Users
|
|
| Backup |
Network, USB
|
|
SATA HDD
|
SATA x 1, max to 12TB each
|
|
PTZ Protocol
|
Through Network
|
|
| USB |
USB 2.0 x 2 (for mouse and USB backup device)
|
|
| Power Consumption |
<4W
|
|
| Power Supply |
48V/2.5A
|
|
| Weight and Dimensions |
Weight 2.54lbs (1.15kg) Net w/o HDD, 4.06lbs (1.84kg) Gross w/o HDD
Dimensions (W x D x H) 11.81” × 1.77” × 9.80” (300mm × 45mm × 249mm)
|
