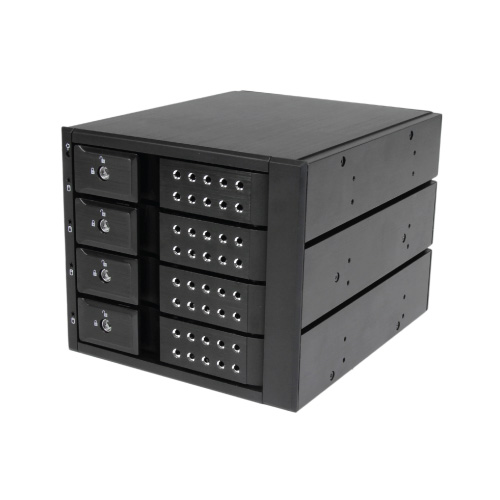

4 Bay 3.5in SATA SAS Backplane Hot Swap

Item #
CS5STA1
Brand
StarTech
MFG Part No
35525
Model
HSB4SATSASBA

Color
Black
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description
4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
Product ID: HSB4SATSASBA

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications
Imaging - for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives
Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution
IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required
Onsite data backup as a secure alternative to cloud storage


Connector(s)
4 - Drive Connectors
SFF-8482 (29 pin, Data & Power, Internal SAS)
4 - Host Connectors
SATA (7 pin, Data)
SATA Power (15 pin)

Environmental
Operating Temperature
0°C to 55°C (23°F to 95°F)
Storage Temperature
-20°C to 60°C (-4°F to 122°F)
Humidity
5%~85% RH


Hardware
Interface
SATA
SAS

Front Door Key Lock
Yes

Number of Drives
4

Drive Size
3.5in

Compatible Drive Types
SAS & SATA

Drive Installation
Removable

Number of internal 3.5 inch bays
4

Fan(s)
Yes

1 - Fans
70 mm

Fan Bearing Type
Sleeve Bearing

Indicators
1 - LED Indicators

Power LED
Drive 1 Activity LED
Drive 2 Activity LED
Drive 3 Activity LED
Drive 4 Activity LED

Packaging Information
Package Height
18,0 cm [7,1 in]

Package Length
16,4 cm [6,5 in]

Shipping (Package) Weight
1,6 kg [3,5 lb]

Package Width
25,4 cm [10,0 in]

Performance
Maximum Data Transfer Rate
6 Gbit/s

Max Drive Capacity
Currently tested with up to 6TB 7200 RPM hard drives

Physical Characteristics
Weight of Product
1,3 kg [2,8 lb]

Color
Black

Product Length
19,7 cm [7,8 in]

Product Width
14,6 cm [5,7 in]

Product Height
12,6 cm [5,0 in]

Software
OS Compatibility
OS independent; No software or drivers required

Special Notes / Requirements
System and Cable Requirements
Flammability rating: UL94 - V0

What's in the Box
1 - Included in Package
4 Drive Trayless 3.5in SATA/SAS Mobile Rack

Instruction manual
Installation screws
Drive bay keys
SATA cables
