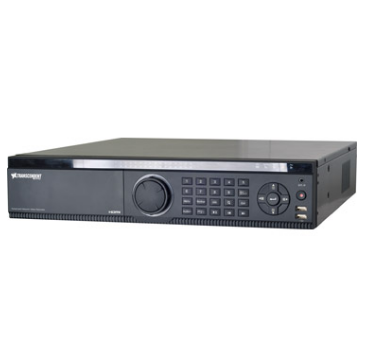

32CH NVR W/16 PoE NO HD H.265 4K Vitek F

32CH NVR W/16 PoE NO HD H.265 4K Vitek F

Item #
NVVT32F
Brand
Vitek
Model
VT-TNR3216PF

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

Transcendent Series Network Video Solutions combine the simplicity of Stand Alone, Plug and Play Recorders and surveillance cameras with professional features and versatile design options. Available in 4, 8, 16, 32, and 64 channel configurations, along with 64 & 128ch Enterprise versions, these simple to use and easy to install NVRs support High Definition IP security cameras up to 8 Megapixel.

A perfect pairing with Transcendent IP Cameras for quick, professional installation offering a variety of viewing options such as Central Monitoring (CMS) and Internet Explorer along with simple yet intuitive IOS and Android apps.

Both the Transcendent TVI and Network recorders share the same client, CMS viewing platform and Mobile apps. Camera options include fixed, varifocal and vandal / weather resistant models.

Specifications

• Video Input / Resolution 32 IP Channels up to 8 MegaPixel (4K)
• Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA
• Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Recording Compression H.265 / H.264
• OS Embedded Linux
• Recording 960fps (30fps per channel)
• Audio over IP Inputs 32 (1 Audio Channel per IP Camera over IP)
• Local Audio In/Out IN: RCA x 1CH / OUT: RCA x 1CH
•  Two-Way Audio YES
• Encode CBR
• Quality Levels 11 level (According to Bit Rate)
• Recording Modes Manual / Timer / Motion / Sensor
• File Management Reserving time, Redundancy, Dual stream recording
• Local Playback 16CH
• Intelligent Analytics Object Removal/Museum Search, Line Crossing, Exception and Area Intrusion Detection (Camera Dependent)
• Face Detection Channels / Database 240 pictures / minute
• Face Detection: Search by Picture Add, Modify, Delete and Search Face Pictures
• Face Detection: Adding face pictures Resolution (64×64 – 1920×1080), jpeg below 200KB
• Face Detection: Face Trace Map Resolution (600×300-3840×2160), jpeg below 200KB
• Image Dewarping De-Warp into 3 Separate Images
• Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search
• Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection
• Alarm Inputs / Output 16CH Local Input + 1 Channel per IP Camera / 4CH
• Network Interface RJ45 x 1
• POE ports RJ45 x 16, with POE
•  PoE Standard 802.3af 15W max per port
• Total PoE Budget 150W all ports
• Total Bandwidth 256Mbps Incoming / 256Mbps Outgoing
• Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet
• Dual-stream Individual Network Video Stream and local recording stream, set seperately
• Remote Viewing CMS / Web Browser / Mobile Platforms
• Remote Users 10 Simultaneous Online Users
•  PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)
• Dimensions (WxHxD) 16.93” x 3.54? x 17.72? (430 x 90 x 450mm)

If you can't find what you're looking for here, please contact your sales representative.
