System Information
|

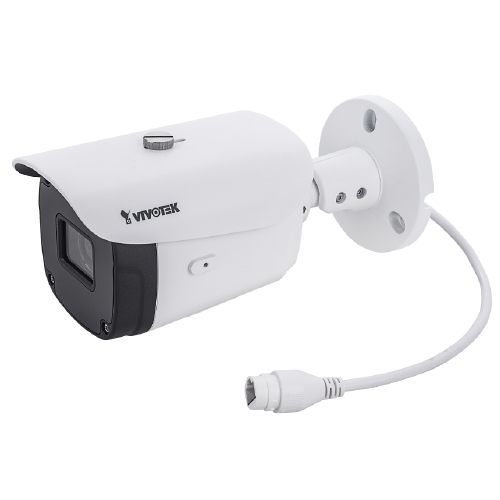

Model: IB9369 (2.8mm) / IB9369 (3.6mm)
CPU: Multimedia SoC (System-on-Chip)
Flash: 256 MB
RAM: 256 MB
|
|
| Camera Features |
Image Sensor: 1/3.1" Progressive CMOS
Max. Resolution: 1920x1080 (2MP)
Lens Type
Fixed-focal
Focal Length
IB9369 (2.8mm): f = 2.8 mm
IB9369 (3.6mm): f = 3.6 mm
Aperture
IB9369 (2.8mm): F2.0
IB9369 (3.6mm): F2.2
Iris Type
Fixed iris
Field of View
IB9369 (2.8mm):
118° (Horizontal)
65° (Vertical)
140° (Diagonal)
IB9369 (3.6mm):
90° (Horizontal)
49° (Vertical)
106° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Enhanced
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination
IB9369 (2.8mm):
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
IB9369 (3.6mm):
0.1 lux @ F2.2 (Color)
<0.005 lux @ F2.2 (B/W)
0 lux with IR illumination on
Tilt Range
90°
Rotation Range
180°
Pan/Tilt/Zoom Functionalities
ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
|
|
Video
|
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 1920x1080
Maximum Streams: 2 video streams (Up to 7 configurable profiles)
S/N Ratio: 59 dB
Dynamic Range: WDR Support
Video Streaming: Adjustable resolution, quality, and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
|
|
Network
|
Users: Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| Solution Integration |
Smart Motion Detection: Five-window video motion detection, people detection, vehicle detection, time filter
VADP Package
Smart Motion Detection
|
|
Alarm and Event
|
Event Trigger: Camera tampering detection, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
Event Action: Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, SFTP, NAS server, SD card
|
|
| General |
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator: System power and status indicator
Power Input
IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported)
Power Consumption
PoE: Max. 6.49W/4W (IR on/off)
DC 12V: Max. 5.1W/3.4W (IR on/off)
Dimensions
Ø 91.1 x 181.5 mm
Weight
671 g
Certifications
EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252):BSMI; Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature
Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off), -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity
95% RH (non-condensing)
Warranty
36 months
|
|
| System Requirements |
Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above
Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
|
|
Included Accessories
|
Packing Contents: Quick installation guide, alignment sticker, screw pack, cable gland
|
