System Information
|

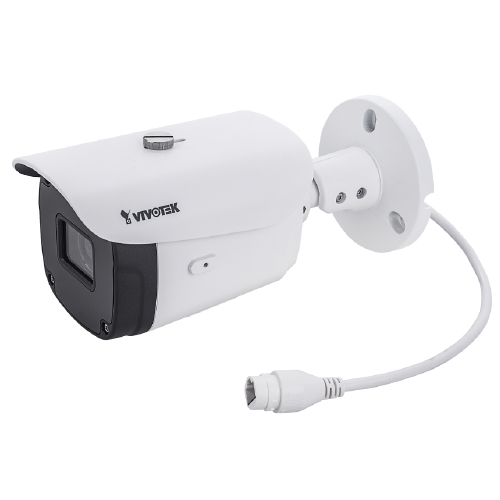

Model: IB9368-HT
CPU: Multimedia SoC (System-on-Chip)
Flash: 128 MB
RAM: 256 MB
|
|
| Camera Features |
Image Sensor: 1/2.9" Progressive CMOS
Max. Resolution: 1920x1080 (2MP)
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: f = 2.8 ~ 12 mm
Aperture: F1.4 ~ F2.8
Iris Type: Fixed iris
Field of View
93° ~ 32° (Horizontal)
50° ~ 18° (Vertical)
110° ~ 37° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.055 lux @ F1.4 (Color)
<0.005 lux @ F1.4 (B/W)
0 lux with IR illumination on
Tilt Range
90°
Rotation Range
180°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom
|
|
Video
|
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: 30 fps @ 1920x1080
Maximum Streams: 3 video streams (Up to 8 configurable profiles)
S/N Ratio: 68 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution, quality, and bitrate, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile setting
|
|
Network
|
Users: Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| Solution Integration |
Video Motion Detection: Five-window video motion detection
VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
|
|
Alarm and Event
|
Event Trigger: Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
|
|
| General |
Connectors: RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input: IEEE 802.3af PoE Class 0
Power Consumption: Max. 12.95 W/9 W (IR on/off)
Dimensions: 85 x 85 x 214.5 mm
Weight: 738 g
Certifications
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Operating Temperature
Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity
90%
Warranty
36 months
|
|
System Requirements
|
Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
Web Browser: Chrome 58.0 or above, Internet Explorer 10/11
Other Players: VLC: 1.1.11 or above
|
|
Included Accessories
|
Packing Contents: Quick installation guide, alignment sticker, screw pack, cable gland
|
