2MP 2.8-12mm IR 98

2MP 2.8-12mm IR 98' Blt SNV VIVOTEK

Item #
CIB21V2
Brand
Vivotek
Model
IB8367A

Color
White
Warranty
2 Year
Condition
Retail Box
If out of stock
3 To 5 Days
Add On Products
Product Description

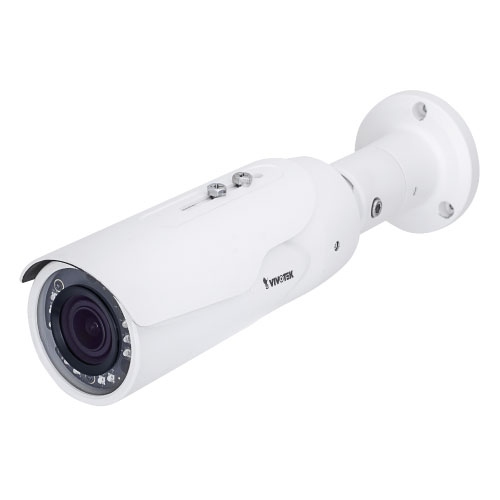

Monitor an outdoor area with the IP66- and IK10-rated V Series IB8367A 2MP Outdoor Vandal-Resistant Network Bullet Camera from Vivotek.
It has a 2.8-12mm varifocal lens with a 103.1-38.3° diagonal field of view to capture 1080p video at up to 30 fps.
It features IR LEDs to capture low-light images from up to 98' away, while enhanced WDR and SNV technology further help produce accurate images in varying lighting conditions.
PoE technology reduces the need for additional cable runs by transmitting both data and power over a single Ethernet cable.

Specifications

• Image Senso: 2 MP 1/2.9" progressive scan CMOS sensor
• Maximum Resolution: 1920 x 1080
•  Lens Type: Varifocal, manual
• Focal Length: 2.8-12mm
• Aperture: f/1.4-2.4
•  Iris: DC-Iris
•  Field of View Horizontal: 100.6-36.2°
Vertical: 54.9-20.4°
Diagonal: 103.1-38.3°
• Shutter Time 1/5 to 1/32,000 secB&W: 0 Lux
• WDR Technology WDR enhanced
•  Day/Night IR cut filter
• Minimum Illumination Color:
0.05 lux at f/1.4
B&W: 0.01 lux at f/1.4
• Pan/Tilt/Zoom ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Number of IR LEDs and Range: 10 x IR LEDs, up to 98' (30 m)
• Onboard Storage: microSD/SDHC/SDXC card slot
• CPU: Multimedia SoC (system-on-chip)
• Flash: 128 MB, RAM 256 MB
•  Compression H.264 and MJPEG
• Maximum Frame Rate: 30 fps at 1920 x 1080In both compression modes
• Maximum Streams: 4 simultaneous streams
• Signal to Noise Ratio (SNR): 65 dB
• Dynamic Range 69.4 dB
• Video Streaming: Adjustable resolution, quality, and bit rateSmart Stream II
• Image Settings: Adjustable image size, quality, and bit rateTime stamp, text overlay, flip & mirrorConfigurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masksScheduled profile settings, 3D noise reduction, video rotation, defog
• Users: Live viewing for up to 10 clients
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
• Interface: RJ45 10Base-T/100Base-TX Ethernet
• ONVIF Supported
• Video Motion Detection: Five-window video motion detection
• Alarm Triggers: Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection
• Alarm Events: Event notification using digital output, HTTP, SMTP, FTP, NAS server, and microSD cardFile upload via HTTP, SMTP, FTP, NAS server, and microSD card
• Operating System Microsoft Windows 8, 7, Vista, XP, 2000
• Web Browser: Mozilla Firefox 7-43 (streaming only)Internet Explorer 7, 8, 9, 10, 11
•  Other Players VLC: 1.1.11 or aboveQuickTime: 7 or above
• Power Input IEEE 802.3af PoE Class 0
•  Casing Metal, IP66, IK10
• Dimensions (Ø x H): 2.8 x 13" (72 x 327 mm),Weight: 2.4 lb (1.1 kg)

If you can't find what you're looking for here, please contact your sales representative.
