VTC-THB2RMS

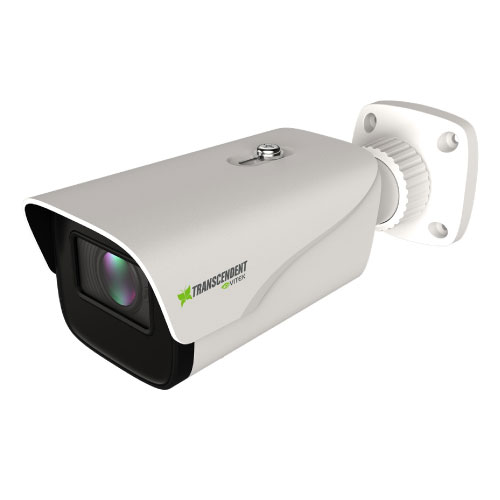

Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1 HDA Bullet Camera w/ Matrix IR & Motorized Varifocal Lens
1/2.8” 2.0 MegaPixel Progressive Scan CMOS Sensor
Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
High Definition Analog (HDA): HD-TVI / AHD / CVI / CVBS (Selectable) Video Output
2.8-12mm Motorized Varifocal Lens
Matrix IR with up to 165' IR Range
True Wide Dynamic Range (WDR)
True Mechanical Day/Night function by ICR
3D-DNR Noise Reduction
IP67 Weather Resistance
Supports Control over COAX
Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
Optional Junction Box Mount Available (VT-TJB08)
12VDC Operation
3 Year Warranty
Transcendent Series High Definition 1080P HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
|
Image Sensor
|
1/2.8” 2 MegaPixel Progressive Scan CMOS Sensor
|
|
Signal System
|
NTSC/PAL
|
|
Effective Pixels
|
1920 x 1080
|
|
Resolution
|
HD-TVI / CVI / AHD: 1080p/720p (2 MegaPixel) / CVBS: 960H
|
|
Video Output
|
HD-TVI / CVI / AHD & CVBS (Selectable)
|
|
Lens
|
2.8mm ~ 12mm
|
|
Day/Night
|
True Day/Night by ICR
|
|
Min. IIIumination
|
0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
|
|
WDR
|
True Wide Dynamic Range (120dB)
|
|
IR LEDs / Range
|
2 Matrix / Up to 165’
|
|
Other Features
|
Auto Gain Control, Auto White Balance, Freeze, Mirror, Sharpness, Motion Detection, Privacy Mask, Auto Defect Correction
|
|
Dynamic (Smart) IR
|
YES
|
|
S/N Ratio
|
=52 dB (AGC Off)
|
|
Digital Noise Reduction
|
3D-DNR
|
|
BLC, LSC, HLC
|
YES – Backlight Compensation, Lens Shading Compensation, Highlight Compensation
|
|
Control over COAX
|
YES (COC)
|
|
Transmission Distance
|
Up to 1500’ (Depending on Cable Characteristics and Integrity)
|
|
Power Input
|
12VDC
|
|
Power Consumption IR
|
Off: 125mA / IR On: 700mA
|
|
Ingress Protection
|
IP67
|
|
Operating Conditions
|
-4°~122° / 10%~90% Humidity
|
|
Dimensions (L x W x H)
|
8.68 x 3.15 x 2.78” (220.5 x 80.1 x 70.5mm)
|
|
Weight
|
21.16 oz. / 1.32 lbs. / 600g
|
