2 MegaPixel License Plate Recognition IP

Item #

CIB21Z1

Brand

Vitek

MFG Part No

VTC-TNT2HR4F2

Model

VTC-TNB2LPR

Color

White

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

64CH Vitek NVR 4K Output 8x HD RAID

NVVT64R

4TB WD Purple SATA6 5400 RPM 256MB

HDDV40T1

6TB WD Purple SATA6 Intellipower 256M

HDDV60TW6

10TB WD Purple Pro SATA 256MB

HDDVX10T3W

8TB WD Purple SATA6 5640RPM 128MB

HDDV84TW

Product Description

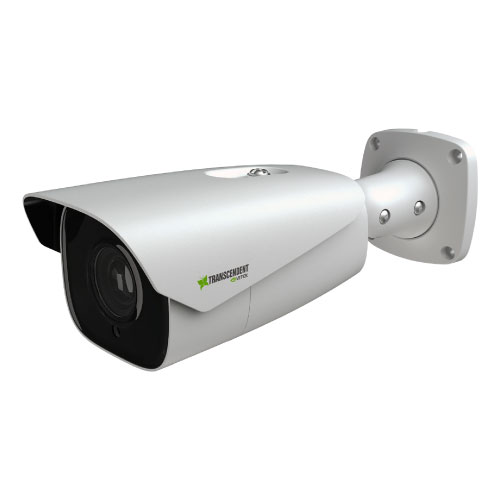

VTC-TNB2LPR Transcendent Series 2 MegaPixel License Plate Recognition WDR IP Motorized Bullet Camera

• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
• 1/2.8” 2.0 Megapixel CMOS Image Sensor
• 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
• 7~22mm @ F1.6 Motorized Varifocal Lens
• Field of View – H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°
• 6 Matrix IRs with up to 325’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• License Plate Recognition (LPR), Abnormal Video, Scene Change
• LPR Snapshot: Overview and Cutout of Plate, LPR White List: 10,000
• LPR Capture Speed Range: 0-44m/h (0~70km/h) [Depending on Installation]
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• One Channel Audio Input + One Channel Audio Output*
• One Channel Alarm Input + One Channel Alarm Output
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Wall Mount Included and Optional Junction Box VT-TJB01 Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS
Image Size 2 MegaPixel (1920 × 1080)
Resolution 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
Min. Illumination 0.0026 lux@F1.2,AGC ON; 0 lux w/ IR / 0.005 lux@F1.6, AGC ON; 0 lux w/ IR
Electronic Shutter 1 / 25 s ~ 1 / 100000s
Lens 7~22mm Motorized Varifocal Lens @ F1.6
IR LEDs, Distance 6 Matrix Style IRs, Up to 325’
Video Compression Smart H.265/(+), H.265, Smart H.264/(+), H.264, MJPEG
Audio Compression G.711A / G.711U
Main-Stream 60Hz: 1080P/720P (1~30fps); HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps) 50Hz: 1080P/720P (1~25fps)
Sub Stream, Third Stream 60Hz: 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF/480×240 (1~25fps)
Bit Rate / Type 64 Kbps ~ 6 Mbps / VBR + CBR
Wide Dynamic Range 120dB
Digital Noise Reduction XD-DNR (3D & 2D-DNR)
Other Features Backlight / Highlight Compensation, Defog
Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
Analytics License Plate Recognition, Abnormal Video, Scene Change
Alarm 1 Ch. Alarm In + 1 Ch. Alarm Out*
Smart Alarm Motion Detection, SD Card Error, SD Card Full
General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock
Region of Interest (ROI) Each ROI to be configured separately
Network RJ45
Hardware Reset Yes
Analog Video Output No
Audio 1 Ch. Audio In + 1 Ch. Audio Out*
Local Storage Built-in Micro SD card slot up to 128GB
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
Interface Protocol ONVIF
Weather IP67
Power Input 12VDC, PoE
Power Consumption (12VDC, PoE) 12VDC / PoE (12VDC) 210mA (IRs Off) / 545mA (on), (PoE) 4W (IRs off) / 7.8W (on)
Working Environment -22°~140° / < 95% Humidity
Weight 36.69.5 oz. / 2.29 lbs. / 1.04kg
Dimensions L x W x H 3.95” x 3.54” x 11.00” (100.3mm x 89.9mm x 279.5mm)
*Please research local, state and federal laws regarding the implementation of audio surveillance.
