1TB SSD Gigabyte M.2 PCIE NVME 3.0 x4

Product Description

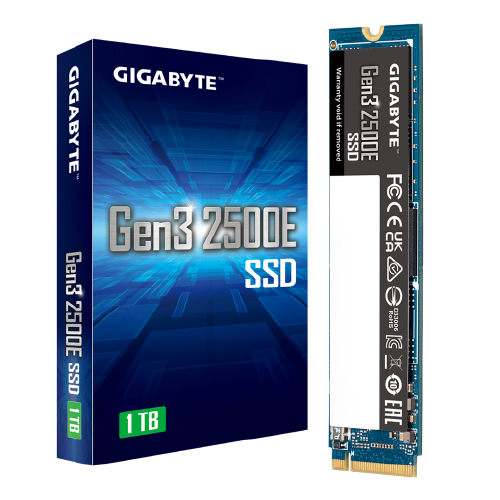

GIGABYTE Gen3 2500E SSD 1TBKey Features Specification Support Gallery Buy
Interface

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x4, NVMe 1.3
Total Capacity: 1000GB*
Sequential Read Speed : up to 2400 MB/s**
Sequential Write speed : up to 1800 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T support
Energy-Efficient
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

A worthy choice for your PC upgrade
GIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 1800 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.

Breaking the Barriers of SATA Limitations (1TB)
Outstanding performance
GIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.
Sequential read speeds up to 2400 MB/s
Sequential write speeds up to 1800 MB/s
GIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10 & 11.

Power Saving While Operating
Comparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Interface	PCIe 3.0x4, NVMe1.3 interface
Form Factor	M.2 2280
Total Capacity	1000GB
Sequential Read speed	Up to 2400 MB/s
Sequential Write speed	Up to 1800 MB/s
Random Read IOPS	Up to 130K
Random Write IOPS	Up to 350K
Dimension	22 x 2.3 x 80 mm
Mean time between failure (MTBF)	1.5 million hours
Max. Operating Power	Read: 2670mW Write: 3200mW
Power Consumption (Idle, PS3)	30mW
Power Consumption(PS4, L1.2)	5mW
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C
Warranty	1. Limited 3 years or 240TBW. 2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note	• Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary. * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
