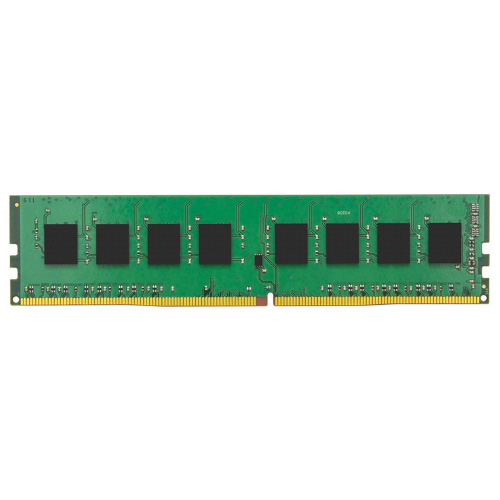

16GB DDR-4 3200 MHZ 1.20V Kingston Bulk

16GB DDR-4 3200 MHZ 1.20V Kingston Bulk

Item #
MMDD49B
Brand
Kingston
Model
KVR32N22S8-16B

Warranty
Lifetime
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
   16GB DDR-4 3200 MHZ 1.20V Kingston Bulk

    Memory Type: DDR4-3200 CL22 SDRAM
    Capacity: 16GB
    Organization: 2G x 64-Bit
    Configuration: 1Rx8
    Component Basis: Eight 2G x 8-bit FBGA components
    SPD Latency: JEDEC standard DDR4-3200 timing (22-22-22) at 1.2V
    DIMM Type: 288-Pin with gold contact fingers


 Power Supply:
        VDD = 1.2V Typical
        VDDQ = 1.2V Typical
        VPP = 2.5V Typical
        VDDSPD = 2.2V to 3.6V

Termination:   Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

Advanced Features:
        Low-power auto self-refresh (LPASR)
        Data bus inversion (DBI) for data bus
        On-die VREFDQ generation and calibration
        Single-rank configuration
        On-board I2 serial presence-detect (SPD) EEPROM


Internal Architecture:
        16 internal banks; 4 groups of 4 banks each
        Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
        Selectable BC4 or BL8 on-the-fly (OTF)
        Fly-by topology
        Terminated control command and address bus

Physical Specifications:         PCB Height: 1.23” (31.25mm)

Compliance:
        RoHS Compliant and Halogen-Free

    Operating Conditions:        UL Rating: 94 V - 0
        Operating Temperature: 0°C to +85°C
        Storage Temperature: -55°C to +100°C
