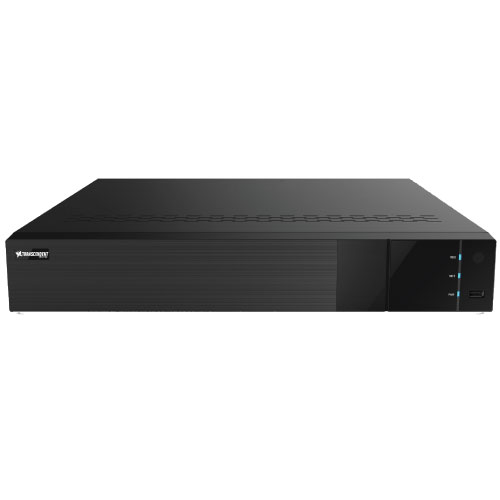

16CH NVR W/16 PoE 8MP  H.265 4K Vitek
16CH NVR W/16 PoE 8MP H.265 4K Vitek
Item #
NVVT16PF
Brand
Vitek
Model
VT-TNR1646PF

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

16 Channel 8 MegaPixel H.265 Network Video Recorder with 4K Output & 16 Port PoE Switch
Features:
• 16 Ch. Stand-alone Real-time IP Network Video Recorder
• Full 8 MegaPixel Real-time Recording (480fps) with 16 Channel (480fps) playback
• H.265 / H.264 Compression
• 4K HDMI & VGA Video Outputs
• Supports Fully Programmable Intelligent Analytics Including Object Removal/Museum Search, Line Crossing, Exception and Area Intrusion Detection (Camera Dependent)
• Supports Facial Recognition and Detection with 16 Channels, and a 10,000 Picture Database. Features Facial Search-by-Picture, with the ability to add pictures through App, Web, and Local PC. Face Trace with resolution of 600×300 – 3840×2160
• 360 Degree (Fish Eye Camera) De-Warping
• 8 Local Alarm Inputs / 4 Alarm Outputs
• Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
• Internal 16-Port PoE Switch, 1 Gigabit LAN Port
• Pentaplex: Live Display / Record / Playback / Backup /Remote Access
• 4 Internal SATA2/SATA3 HDD Slots supporting up to 40TB (4 x 10TB HDD) Internal Storage
• RS485 & Network Based PTZ Control
• Applications for iOS® & Android®
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Software Included
• Supports Dynamic and Static IP Addresses
• Web-based remote configuration
• Control locally via USB Mouse, or with the Included IR Remote control
• Mountable / Heavy Duty Rack Ears Included

Specifications

Video Input / Resolution 16 IP Channels up to 8 MegaPixel
Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA
Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
Recording Compression H.265 / H.264
OS Embedded Linux 480fps (30fps per channel)
Audio over IP Inputs 16 (Camera dependent)
Local Audio In/Out RCA x 1CH / OUT: RCA x 1CH
Two-Way Audio YES
Encode CBR / VBR
Quality Levels 11 level (According to Bit Rate)
Recording Modes Manual / Timer / Motion / Sensor
File Management Reserving time, Redundancy, Dual stream recording
Local Playback 16CH
Intelligent Analytics Object Removal/Museum Search, Line Crossing, Exception and Area Intrusion Detection (Camera Dependent)
Face Detection Channels / Database 240 pictures / minute
Face Detection: Search by Picture Add, Modify, Delete and Search Face Pictures
Face Detection: Face Trace Map Resolution (600×300-3840×2160), jpeg below 200KB
360° Camera De-Warping Multiple Views include 360° Overview, Double 180° Panorama View, Quad View, Overview + 3 Views, and Single View
Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search
Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection
Alarm Inputs / Output 8CH / 4CH / Record, Snap, PTZ move, Alarm out, E-mail, etc
Network Interface RJ45 x 1 512Kbps ~ 10 Mbps (Adjustable)
PoE Ports / Standard / Total PoE Budget RJ45 x 16, with POE / 802.3af 15W max per port / 150W all ports
Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)
Total Bandwidth 256Mbps Incoming / 256Mbps Outgoing
Dual-stream Individual Network Video Stream and local recording stream, set seperately
Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet
Internet-streaming Total 95 task resource (Local+Remote) 16 CH IE playback
Remote Viewing CMS / Web Browser / Mobile Platforms
Remote Users 10 Simultaneous Online Users
Backup Network, USB
SATA HDD SATA x 4, max to 10TB each (40TB Total)
RS485 RS485 x 2 (for PTZ and Keyboard)
PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)
USB USB 2.0 x 1 + USB 2.0 x 1 (for mouse and USB backup device)
Power Consumption / Supply 15W (Without HDD) / AC 110/220V (ATX 300W)
Working Environment 32°~122°F @ 10% ~ 90% RH
Dimensions (Metric) / Weight (Metric) 17.3 x 15.4 x 2.8” (440 x 390 x 77mm) / 15.19lbs (6.89kg)
