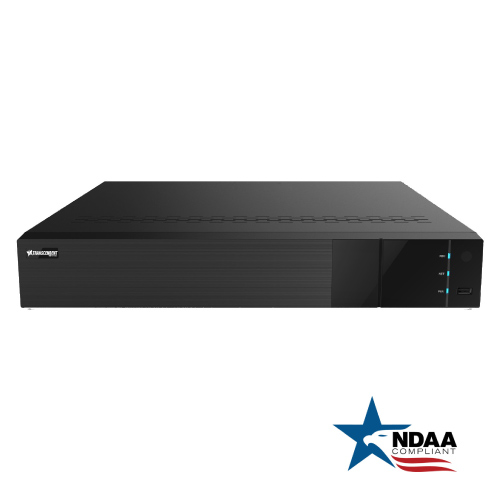

16CH NVR W/16 PoE 12MP H.265 4K NDAA

Item #
NVVT16PF1
Brand
Vitek
Model
VT-TNR1646PFN

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
NDAA Compliant 16 Channel 8 MegaPixel H.265 Network Video Recorder with 4K Output & 16 Port PoE Switch

16 Channel Stand-alone Real-time IP Network Video Recorder
12MP Recording @ 20fps per Channel, 8MP [4K] Recording @ 30fps per channel
4K HDMI (× 2) & VGA Video Outputs
H.265S / H.265+ / H.265 / H.264 Video Compression
Gen. IV Advanced Analytics: Regional Entrance / Exit, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face Detection, Object Missing, Exception
Supports License Plate Recognition Cameras + Panoramic / Peri-Cams [180° and 360°] + Fisheye / 360° Camera DeWarping [WEB & APP]
Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
Internal 16-Port PoE Switch
1 Gigabit LAN Port
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
4 Internal SATA2 / SATA3 HDD Slot supporting up to 48TB Total (4 × 12TB)
Network Based PTZ Control
Applications for iOS® & Android®
Remote Viewing via Web Browser
Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller]
Supports both Dynamic and Static IP Addresses
Web-based remote configuration
Control locally via USB Mouse or with the Included IR Remote control
Heavy Duty Rack Ears Included
3 Year Warranty

Video Input / Resolution
16 IP Channels up to 12 MegaPixel

Main Monitor Output (HDMI1, HDMI 2, VGA) HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024, HDMI 2 & VGA × 1: 1920 × 1080 / 1280 × 1024 [*HDMI and VGA output the same Video Source]

Multi-Screen Display
Main Output: 1/4/6/8/9/13/16 (Live View), AUX output: 1/4/6/8/9 (live view) [Max. 16+9CH local live view]

Multi Operation
Pentaplex: Live Display / Record / Playback / Backup / Remote Access

Recording Compression H.265S / H.265+ / H.265 / H.264

OS
Embedded Linux

Recording Resolution 240fps @ 12MP (20fps/ch), 480fps @ 8MP [4K] or less (30fps/ch)

Audio over IP Inputs 16 (Camera Dependent)

2-Way Audio, Local Audio In/Out
YES, IN: RCA × 1Ch. / OUT: RCA × 1Ch. G.711 (U/A Compression)

Encode CBR / VBR

Recording Modes Manual / Timer / Motion / Sensor / Alarm / AI

Local Playback
16Ch.

Gen. IV Advanced Analytics [Camera Dependent]
 Regional Entrance/Exit, Line Crossing, Target Counting [All by Human/Motor Vehicle Classification] Face Detection [FD], Object Abandoned/Missing, Video Blur, Color Cast, Abnormal Video + License Plate Recognition & Fisheye Dewarping [WEB & APP]

Face Detection
16Ch., 32 Libraries (10,000 Face pics), 18 pics/sec Computing, Search by Pic, Add/Modify/Delete/Search Pics, Add pics w/ App, Web, Ext. Import, Supports Allow/Block Lists and Stranger Match Alarm, Track Display on Map, Bar Graph Stats by Time Period

License Plate Recognition Supports Overview and Cut-Out of Plate, 10,000 Plate Database, 0-75mph (120kmph) Capture Speed (Installation Dependent)

360° Camera De-Warping
Multiple Views include 360° Overview, Quad, Overview + 3 Views, and Single View [Web & App]

Search Time Sliced Image Search, Time/Calendar Search, Event (Motion, External Alarm), Tag Search

Smart Search Highlighted Color to Display Certain Time Periods – Colors Refer to Different Recorded Events

Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk Error, Illegal access, Network Disconnection, Smart Events

Alarm In/Output & Triggering 16 CH Local Alarm Input, Supporting IPC Alarm Input / 4 CH Output, Record / Snap / PTZ Move, Alarm Out / E-mail

Network Interface RJ45 10 / 100 / 1000 Mbps × 2

Total Bandwidth
160Mbps/160Mbps

Dual-stream
Individual Network Video Stream and local recording stream, set separately

Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, RTSP, HTTP, HTTPS, 802.1x, SNMP, ONVIF

Remote Viewing VMS / Web Browser / Mobile Platforms [iOS, Android]

Backup
Network, U Disk, USB Mobile HDD

SATA HDD SATA × 4 (Max 12TB per HDD = 48TB total), e-SATA × 1

USB
USB 3.0 × 1, USB × 2.0 × 2

RS485 RS485 (Full-Duplex), Connect to PTZ

PTZ Protocol, Support Through Network or RS485 (Pelco D / Pelco P), PTZ Preset and Auto Cruise, up to 255 Presets and 8 Cruises

Power Consumption / Supply = 20W (Without HDD)  / AC 110/220V (ATX 300W)

Working Environment  14ºF~122ºF (-10º~50ºC) / 10~90% RH

Dimensions (W×D×H) 17.32 × 15.35 × 2.76” (440 x 390 x 70mm)

Weight Net: 9.59lb (4.35kg), Gross: 12.46lb (5.65kg)
