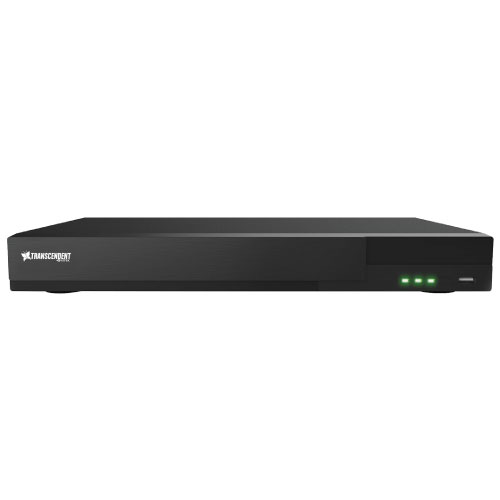

16 CH 2MP/5MP Lite 5-IN-1 DVR 2xSATA VT

Item #

DVT216V

Brand

Vitek

MFG Part No

VT-TTR1620

Model

VT-TR2HA1620

Color

Black

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

2.MP 2.8mm IR TVI/AHD Turret VITEK

ADA21VT

2MP 2.8mm Bullet TVI/AHD IR VITEK

ABA21VT2

Product Description

The Ultra Versatile and User friendly Transcendent High Definition 5-in-1 Analog (Coax Based) Digital Recorders support Recording and Playback of TVI/AHD format cameras up to 5MP (Lite Mode) and CVI up to 4MP (Lite Mode) and offer H.265 Compression.

Although they are DVRs in nature, they also offer maximum IP channel support in full Hybrid Mode.

These recorders share the same client, CMS and mobile applications as the Transcendent NVRs. Camera options include fixed, and Varifocal Motorized Auto Focus with COC and vandal/weather resistant models. Control Drivers are available for various Automation Systems

Specifications

• Video Input 16 Channels HD-TVI / AHD / CVI / CVBS Analog BNC Inputs Supporting up to 5MP Lite
• IP Camera Support 8 IP Cameras (5MP @ 30fps Max)
• Compression H.265
• Recording (5MP Lite) 160fps: 10fps per channel
• Recording (4MP Lite / 1080P) 240fps: 15fps per channel
• Recording (1080P Lite) / (720P) 480fps: 30fps per channel
• Local Playback 16 CH
• OS Embedded Linux
• Video Output 1 x HDMI (1080p) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
• Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Audio Input: RCA x 8 / Output: RCA x 1
• Two-Way Audio YES
• Bit Rate 32Kbps ~ 5Mbps
• Encode VBR / CBR
• Quality Levels 6 level
• Recording Modes Manual / Timer / Motion / Sensor
• Search Time Sliced, Time, Event, Tag Management
• Function Play, Pause, FF ,FB, Shutter Control, Jog, Digital zoom
• Alarm In/Out 16 Alarm inputs / 1 Alarm Output
• Alarm Modes Sensor, Motion, Video loss
• Alarm Triggering Record, PTZ move, Relay out, E-mail, etc
• Network Interface RJ45 x 1
• Remote Viewing CMS / Web Browser / Mobile Platforms
• Remote Playback 16CH
• Dual-stream Individual Network Video Stream and local recording stream, set separately
• RS485 RS485 x1 (for PTZ)
• PTZ Protocol Control over Coax, Pelco D / Pelco P
Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
• SATA HDD Up to 20TB (1 x 10TB) + E-SATA x 1
• USB 2 x USB 2.0 for mouse and USB backup devices
Accessories Remote controller, SATA cable, USB mouse
• Dimensions (WxHxD) 15” x 1.75” x 11” (381mm × 44.45mm × 254mm)
