System Information
|
Model

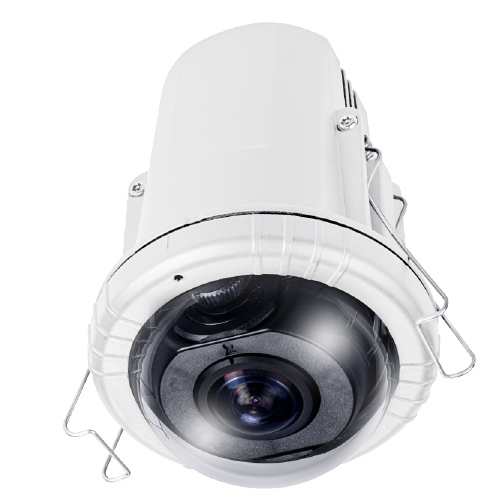

FE9192-H
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
|
|
| Camera Features |
Image Sensor
1/2.3" Progressive CMOS in 4056x3040
Max. Resolution
2944x2944
Lens Type
Fixed-focal
Focal Length
f = 1.22 mm
Aperture
F2.0
Iris Type
Fixed iris
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
0.1 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
Pan/Tilt/Zoom Functionalities
ePTZ: 12x digital zoom (12x on IE plug-in)
Storage
Seamles Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Pixel calculator
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2944x2944 (WDR off)
20 fps @ 2944x2944 (WDR on)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
56.9 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, exposure control, AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
Display Mode
Client Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
|
|
Audio
|
Audio Capability
One-way audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
|
|
Network
|
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| AI Analytics |
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: people, vehicle (4-wheeled, 2-wheeled);
Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);
Re-Search Extraction;
Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
|
|
| Solution Integration |
Applications
Stratocast, Trend Micro IoT Security (3-year free trial)
|
|
Alarm and Event
|
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via audio clip, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
|
|
| General |
Connectors
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
|
|
| LED Indicator |
System power and status indicator
|
|
| Power Input |
IEEE 802.3af PoE Class 0
Power Consumption
Max. 9 W
|
|
| Dimensions |
ø 82 x 122 mm
Weight
353 g
|
|
| Certifications |
EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B),
RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B);
Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471);
IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety : CNS 14336-1)
|
|
| Starting Temperature: |
Starting Temperature: 0°C ~ 50°C (32°F ~122°F)
Working Temperature: -10°C ~ 50°C (14°F ~122°F)
|
|
| Humidity |
98% RH (non-condensing)
|
|
| Warranty |
36 months
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
|
|
| Web Browser |
Chrome 58.0 or above
Other Players
VLC: 1.1.11 or above
|
|
| Included Accessories |
Packing Contents
Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable
|
|
| Packing Contents |
Quick installation guide, alignment sticker, screw pack
|
|
|
|
